Cimco Press connector

Minimum order 5
Ratings
BrandMore from Cimco
Delivered between Thu, 9.4. and Fri, 10.4.
8 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

Cimco compression connector 183704

Manufacturer: Cimco

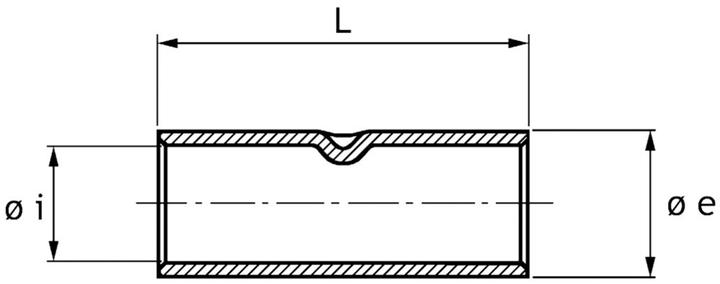

Designation: Compression connector 35 mm², length 50 mm
Type: 183704
Nominal cross-section: 35 mm²
AWG range: 2
Design: DIN design
Sleeve shape: Long
Suitable for solid conductors: Yes
Suitable for stranded conductors: Yes
Suitable for fine-stranded conductors: Yes
Suitable for high temperatures (up to 650 °C): No
Suitable for enameled wire: No
Suitable for round conductors: Yes
Suitable for flat conductors: No
Material: Copper
Surface protection: Tin-plated
Insulation: Without
Voltage series: Up to 35 kV
Type of connection: Butt connector
Number of branches: 2
For strain-relieved connections: No
Oil stop/center bar: No

Compression connector DIN 46267, part 1, for strain-relieved connections, made of electroplated tin-plated E-Cu tube, for conductor cross-section 35 mm², length 50 mm. EAN: 4021103837047.

Key specifications

Colour
Silver
Suitable for cable cross-section
35 mm²
Items per sales unit
1x

General information

Item number
20348416
Manufacturer
Cimco
Category
Cable joints
Manufacturer no.
183704
Release date
30.3.2022
External links
Manufacturer's site (de)
Minimum order
5
Order quantity steps
5

Colour

Exact colour description
Metal, Metallic
Colour
Silver

Material

Material
Copper
Material group
Metal

Cable connection Properties

Suitable for cable cross-section
35 mm²
Plug type
Flat

Origin

Country of origin
France, Poland

Voluntary climate contribution

CO₂ emissions
0.02 kg
Climate contribution
CHF 0.11

Scope of delivery

Items per sales unit
1x

Product dimensions

Length
50 mm
Width
50 mm
Weight
3.15 g
