Cimco Kati

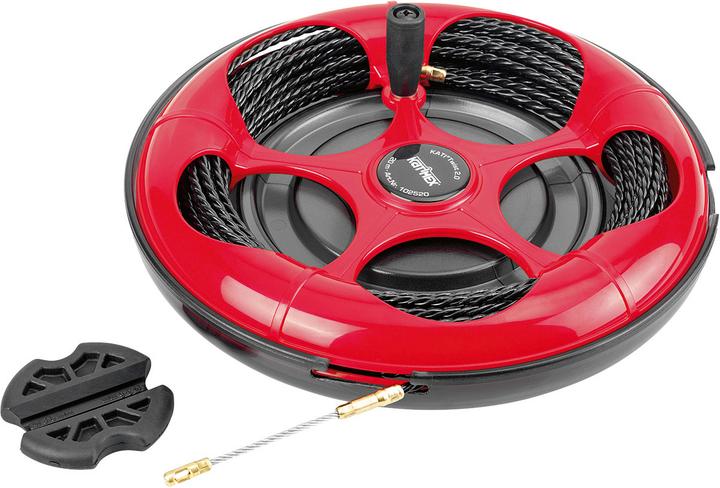

Cimco Tools Kati Twist 2.0 L20m 142570

Manufacturer: Cimco Tools
Description: Kati Twist 2.0 L20m with accessories
Type: 142570
Application area: Installation pipe
Material: Plastic
Material quality: Polyamide (PA)
Color: Black
Width/Diameter of pulling wire: 3 mm
Material thickness of pulling wire: 4.5 mm
Breaking load: 407 kg
Head shape: Other
Diameter of cable guide head: 10 mm
Shape: Flat
Thread connection: Yes
Length: 20 m
Carrying type: Housing
Drum/Ring diameter: 330 mm
Twisted: No

Cimco Tools Kati Twist 2.0 L20m 142570: Additional details
Katimex Kati Twist 2.0. Easy and quick winding of twisted pull bands thanks to the crank function and ergonomic, impact-resistant housing. The extra short starting sleeve allows for passing through extremely tight bending radii. With three-fold twisted plastic pull bands, tensile loads of up to 130 kg (band/starting sleeve) are easily achievable. With its M5 thread, Kati Twist 2.0 is compatible with the complete accessories of Kati Blitz or Kabelmax. Users can independently repair the pull bands of the Kati Twist 2.0. Ergonomic housing with crank function, three-fold twisted pull band, very high glide capability in empty pipes, extremely wear-resistant, band diameter 4.5 mm. Pulling aid is integrated flush and securely in the handle of the housing. Includes 1 x pulling aid for Kati Twist 2.0, 1 x pulling head with eye, brass with M5 thread, ø 6 mm, and 1 x guiding head with eye, brass with M5 thread, ø 7 mm. 20 m.
