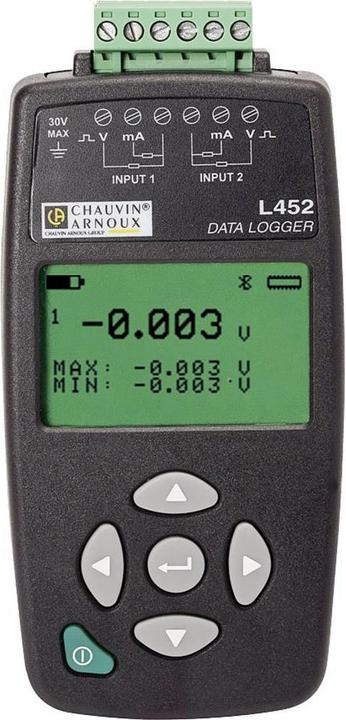

Chauvin Arnoux Multi-data logger L452 Measured variable Voltage

With its two independent inputs, the L452 is ideally suited for industrial processes such as measurement and dosing, as well as for environmental protection tasks. Various sensor systems can be connected to its inputs for recording all types of data:

• 4-20 mA current loops
• 0-10 V voltage circuits

These modules can also record diverse data such as:

• Temperature
• Humidity
• Air velocity

For each channel, the current value is displayed in real-time on the LC display. The L452 can be connected to a PC for configuration and data transmission via a USB port and Bluetooth.

The proven data analysis software Dataview® includes a special module developed for connecting Chauvin Arnoux® data loggers.

The data logger can also be configured through a very user-friendly interface with buttons on the front panel. The menus are available in multiple languages, and the buttons can be locked via the PC software.

Adjustable alarms are available for the various measurement parameters. In the counting function, the data logger displays the measurement in the desired unit (Wh, m.s, etc.).

The user can start a pre-programmed measurement campaign at any time using the buttons on the L452.

The ergonomic design simplifies usage: magnetic back for attachment to control cabinets, Multifix mounting, and a base for tabletop placement. The device can be powered by batteries or connected to mains power.
