Celsa Cable conversion

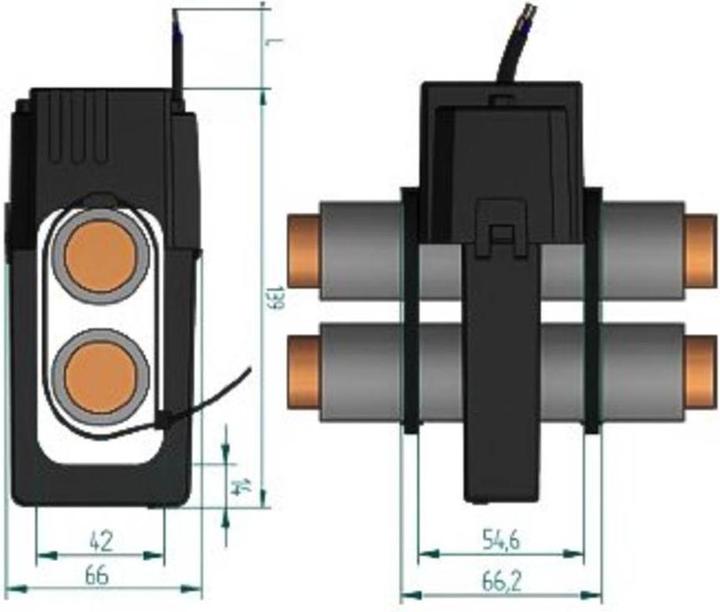

Celsa Cable Conversion Current Transformer TQ84 400/5A Class 1

Manufacturer: Celsa
Designation: Cable Conversion Current Transformer TQ 84
Type: TQ84 400/5A Class 1
Design: Cable conversion current transformer
Primary rated current: 400 A
Secondary rated current: 5 A
Secondary rated apparent power: 0.5 VA
Calibrated: no
With touch protection: no
Opening diameter: 42 mm
Snap fastening: no
With copper busbar: no
Secondary connection: Cable
Number of primary inputs: 1

These cable conversion current transformers are excellent for retrofitting, as the circuit does not need to be interrupted. Additionally, these current transformers are very compact, allowing the clamp transformers to fit in tight installation spaces. With the built-in color-coded cables and the included UV-resistant cable ties, we ensure quick and secure installation. We offer various sizes with primary rated currents from 60 A to 1000 A, secondary rated currents of 1 A or 5 A, and accuracy classes of 0.5, 1, and 3. This current transformer is specifically designed for digital measuring devices but is also suitable for general use. All current transformers meet the requirements of DIN EN 61869.
