Celsa Cable conversion

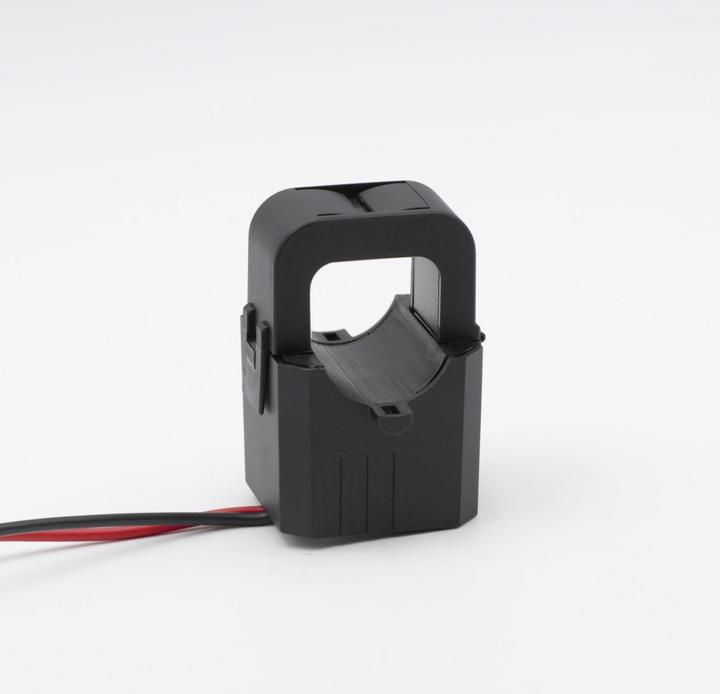

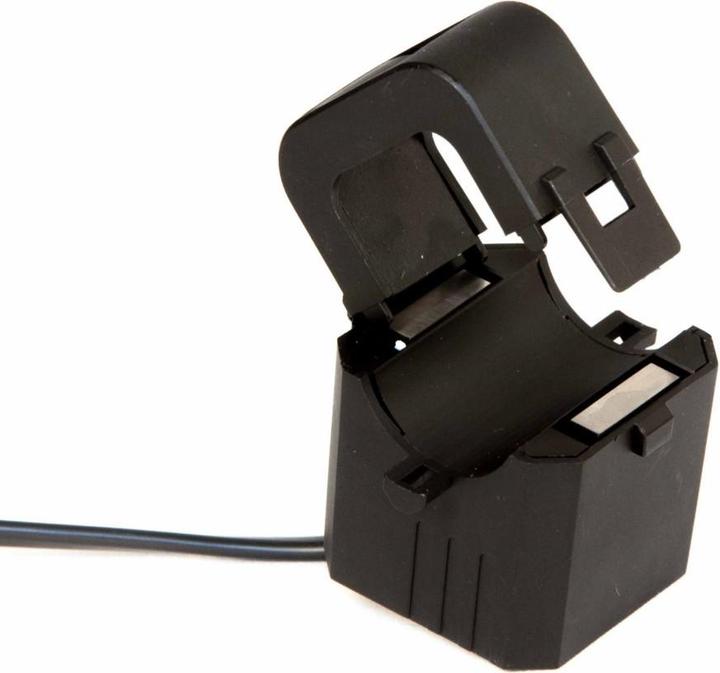

Celsa cable conversion current transformer TQ27 300/1A Kl.1 Manufacturer :Celsa Designation :Cable conversion current transformer TQ 27 Type :TQ27 300/1A Kl.1 Version :Cable conversion current transformer Primary rated current In :300 A Secondary rated current :1 A Secondary rated apparent power :0.2 VA Calibrated :no With touch protection :no Opening diameter :28 mm Snap-on mounting :no With copper rail :no Secondary connection :Cable Number of primary inputs :1 Celsa cable conversion current transformer TQ27 300/1A Kl.1Further details These cable conversion current transformers are ideal for retrofitting as the circuit does not have to be interrupted. In addition, these current transformers are very compact, so that the hinged transformers fit into tight installation spaces. The built-in colour-coded cables and the UV-resistant cable ties supplied ensure quick and safe installation. We offer the various sizes with primary rated currents of 60 A to 1000 A, secondary rated currents of 1 A or 5 A and in class accuracies of 0.5 to 1 3. This current transformer is especially suitable for digital measuring devices, but is of course also suitable for normal use. All current transformers fulfil the requirements of DIN EN 61869, EAN: 9503716135864.
