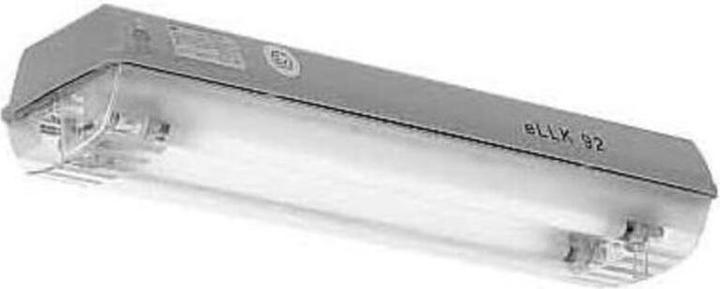

Ceag Ex luminaire 2x18W eLLK 92018/18 ** 12265875101 single-sided DV

Ceag Safety Technology Light eLLK 92018/18 1/6-1

Manufacturer: Ceag Safety Technology
Designation: Light
Type: eLLK 92018/18 1/6-1
Mounting Type: Wall/Ceiling Mount
Adjustable: No
Light Source: Fluorescent Lamp
Includes Light Source: No
Suitable for Number of Light Sources: 2
Socket: G13
Material of Housing: Plastic
Material of Cover: Transparent Plastic
Voltage Type: AC/DC
Nominal Voltage: 110..254 V
Operating Device: Electronic Ballast
Includes Operating Device: Yes
Replaceable Operating Device: No
Light Distributor: Reflector
Beam Angle: Wide beam 41-80°
Rated Lifetime L70/B50 at 25 °C: 60000 h
Protection Class (IP): IP66
Protection Class (NEMA): Other
Impact Resistance: IK10
Protection Class: I
For Ex-Zone Gas: 1, 2
For Ex-Zone Dust: 21, 22
Rated Ambient Temperature according to IEC62722-2-1: -25..55 °C
Suitable for Lamp Power: 18 W
Max. System Power: 116 W
Rated Luminous Flux according to IEC 62722-2-1: 2.7 lm
Light Color: White
Color Temperature: 3500..5500 K
Power Factor: 0.95
Constant Luminous Flux Control: No
Width: 188 mm
Height/Depth: 130 mm
Length: 760 mm
Outer Diameter: 0 mm
Wiring Type: Suitable for Through Wiring
Number of Poles: 6
Conductor Cross Section: 6 mm²
Connection Type: Screw Terminal

Additional Details:
Ex-linear light for Zone 1/21
Variant: eLLK 92018/18 1/6-1K
Voltage: 110 V - 254 V AC and 110 V - 250 V DC
Frequency: 50 Hz / 60 Hz
Through Wiring: No
Connection Terminal Points: 1x 6 Terminal Points
Lamp: 2x T26 / 18 W (not included)
Lamp Base: G13
Lumen: 2700 lm
Protection Class: IP66
Protection Class: I
Luminaire Operating Efficiency: 78%
Material of Housing: Polycarbonate
Housing Color: Light Grey (RAL 7035)
Cable Entry: 2x M25 Thread (Plastic) with 2x M25 Cable Gland (Plastic) and 1x M25 Blind Plug (Plastic).
