Busch-Jaeger Switching actuator

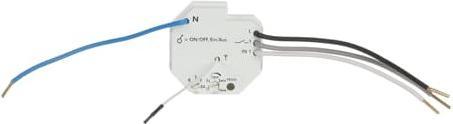

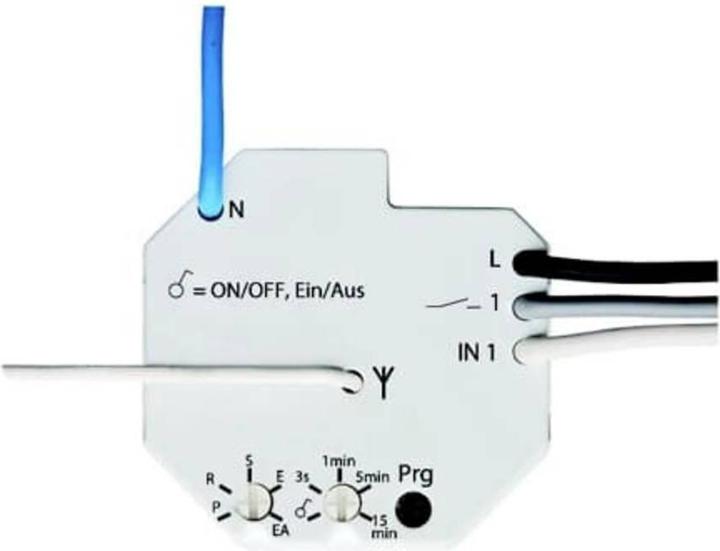

Busch-Jaeger Switch Actuator 6701-101

Manufacturer: Busch-Jaeger
Designation: Single-channel switch actuator, flush-mounted
Type: 6701-101
Suitable for push buttons: yes
Suitable for switches: yes
In housing: yes
Power supply: 230 V AC
Push operation: yes
Switch operation: yes
Number of relays: 1
Mounting type: other
Material: plastic
Material quality: thermoplastic
Halogen-free: yes
Surface protection: untreated
Surface finish: matte
Mounting method: other
Color: white
RAL number (similar): 9016
Suitable for protection class (IP): IP20
Radio frequency: 868 MHz
Modulation: FM
Number of commands: 3

The Busch-Jaeger Switch Actuator 6701-101 enables the switching of electrical loads via radio. Functions via radio: On/Off, timer, and light scene control. Functions via auxiliary control: On/Off, timer, and sending radio telegrams. Operation via conventional push buttons is possible. Activating the auxiliary control switches the output and sends a radio telegram.

Switch-off delay: adjustable to 5 s, 1-5-15 min. Repeater function can be activated to increase range. Suitable for universal surface or flush mounting. 3-wire connection technology (neutral wire required). For installation in (deep) flush-mounted boxes according to DIN 49073. Can be controlled via up to 32 transmitter addresses. Transmit/receive frequency: 868 MHz. Range: approx. 100 m (open field).
