Busch-Jaeger Socket

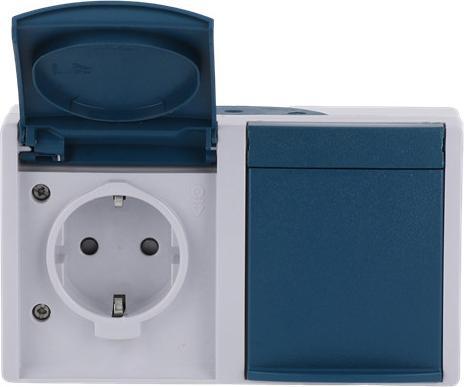

Busch-Jaeger socket outlet 20/2 EBW-53

Manufacturer: Busch-Jaeger
Designation: Socket outlet
Color: Grey/blue-green
Type: 20/2 EBW-53
Design: SCHUKO
Protective contact: Yes
Protective earth contact round: No
Number of active contacts (round): 2
With signal lamp: No
With built-in USB power supply: No
Number of units: 2
Number of modules (for modular design): 1
Number of phases: 1
Imprint/labeling: Without
Connection type: Plug-in terminal
With hinged cover: Yes
With increased touch protection: Yes
Text field/labeling area: No
RAL number (similar): 7035
Transparent: No
Lockable: No
Ejector mechanism: No
Insulated installation: Yes
With function lighting: No
With orientation light: No
Overvoltage protection: No
Residual current protection: No
With fine-wire fuse: No
Special power supply: Without special power supply
Mounting type: Surface-mounted
Mounting type: Fastening with screw
Material: Plastic
Material grade: Thermoplastic
Halogen-free: Yes
Surface protection: Untreated
Surface finish: Matt
Antibacterial treatment: No
With on/off switch: No
With loop-through function: Yes
Twisted central insert: No
Rated current: 16 A
Rated voltage: 250 V
Frequency: 50 Hz
Rated residual current: 0 mA
Suitable for protection class (IP): IP44
Impact resistance: IK04
Device width: 145 mm
Device height: 83 mm
Device depth: 55 mm
Min. depth of device box: 0 mm
Cover: Complete housing
For "difficult conditions" (according to VDE): No

Busch-Jaeger socket outlet 20/2 EBW-53: Further details
2-fold for horizontal mounting. With plug connection. Pre-wired. With hinged covers. 2 P + E. Can be labeled with label holder 1763-53.
