Busch-Jaeger Sensor/switch actuator 2/2-f. 6211/2.2 for Busch-free home 6211/2.2 (6220-0-0014)

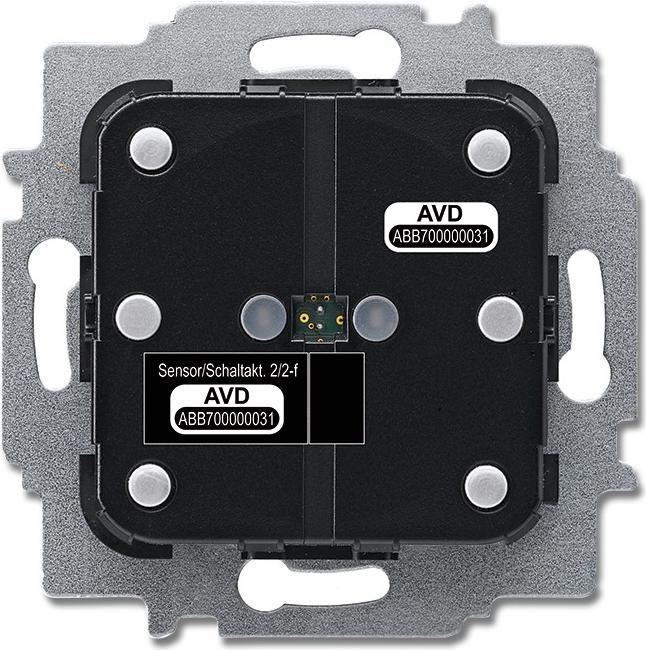

Busch-Jaeger Sensor/Switch Actuator 6211/2.2

Manufacturer: Busch-Jaeger
Designation: Sensor/Switch Actuator 2/2-fold
Type: 6211/2.2
KNX Bus System: no
KNX Radio Bus System: no
Radio Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: other
Mounting Type: Flush-mounted
Local/Manual Operation: yes
With LED Display: no
Max. Switching Power: 1380 W
Max. Number of Switching Outputs: 2
Max. Switching Current: 6 A
Rated Current: 6 A
Rated Operating Voltage: 230 V
Connectable Different Phases: yes
With Bus Coupling: no
Bus Module Removable: no
Min. Depth of Device Box: 32 mm
Modular Expansion Option: no
Protection Class (IP): IP20

The Busch-Jaeger Sensor/Switch Actuator 6211/2.2 is a 2/2-fold switch actuator for Busch-free@home®. It is suitable for switching 127 V~/230 V~ consumers and features an integrated 2-fold switch actuator. The switching function is available without prior programming, as both sensor channels are pre-configured. The configuration can be changed later via the web interface (groups, scenes).

The bus connection is made via the included bus terminal. When installing in the flush-mounted box, care must be taken to maintain a spatial separation between the bus and the 127 V/230 V installation line. If the minimum distance is not maintained, electronic boxes or insulating sleeves should be used. Programming is only possible with bus voltage applied via the web interface of the System Access Point. Further information on commissioning and operation can be found in the system manual and the online user manual.

EAN: 4011395180013.
