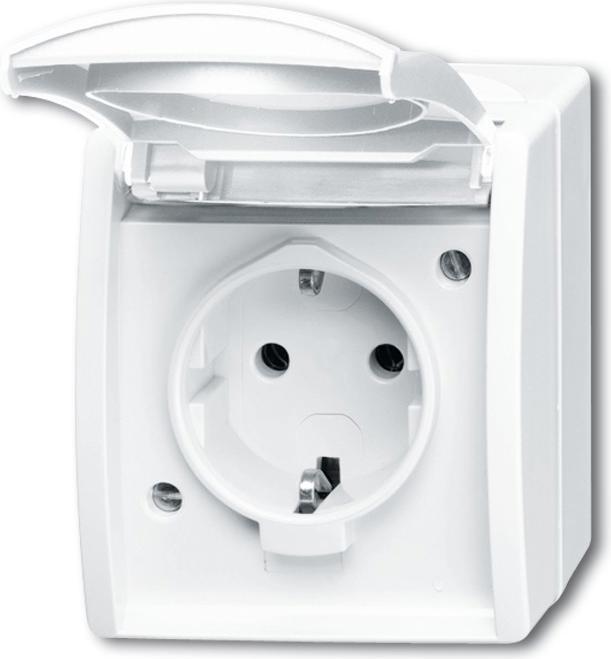

Busch-Jaeger Schuko socket

Busch-Jaeger Schuko socket outlet 20 EW/DVN-53

Manufacturer: Busch-Jaeger
Designation: Schuko socket outlet with EDV/name plate
Type: 20 EW/DVN-53
Design: Schuko
Protective contact: Yes
Protective conductor contact round: No
Number of active contacts (round): 2
With signal lamp: No
With built-in USB power supply: No
Number of units: 1
Number of modules (with modular design): 1
Number of phases: 1
Imprint/marking: Without
Connection type: Plug-in terminal
With hinged cover: Yes
With increased touch protection: No
Text field/inscription area: Yes
Color: Gray/blue-green
RAL number (similar): 3003
Transparent: No
Lockable: No
Ejector mechanism: No
Insulated installation: Yes
With function lighting: No
With orientation light: No
Overvoltage protection: No
Residual current protection: No
With microfuse: No
Special power supply: EDP
Mounting type: Surface mount
Mounting type: Screw mounting
Material: Plastic
Material quality: Thermoplastic
Halogen-free: Yes
Surface protection: Untreated
Surface finish: Matt
Antibacterial treatment: No
With on/off switch: No
With loop-through function: Yes
Rotated central insert: No
Rated current: 16 A
Rated voltage: 250 V
Frequency: 50 Hz
Rated residual current: 0 mA
Suitable for protection class (IP): IP44
Impact resistance: IK04
Device width: 74 mm
Device height: 83 mm
Device depth: 55 mm
Min. depth of device box: 0 mm
Cover: Complete housing
For "difficult conditions" (according to VDE): No

Further details:
With plug-in connection, 2 P + E, with red hinged cover, EDV, (RAL 3003). With labeling field, labeling field size 57.8 x 9.8 mm. Continuous colored labeling (hinged lid and base). Suitable labeling software available.
EAN: 4011395993231.
