Busch-Jaeger Rocker

Busch-Jaeger rocker anth 1764 NLI-81

Manufacturer: Busch-Jaeger
Designation: Rocker anth with labelling field
Type: 1764 NLI-81
Design: One-piece push-button
Imprint/labelling: Without
Scannable symbol/accessible: No
Use: Switch/button
Suitable for bus system push-button coupling: No
Mounting type: Clamp mounting
Control window/light outlet: No
Material: Plastic
Material quality: Thermoplastic
Halogen-free: Yes
Surface protection: Untreated
Surface finish: Glossy
Colour: Anthracite
RAL number (similar): 7021
With labelling field: Yes
With exchangeable lens/symbol: No
Suitable for protection class (IP): IP20
Impact resistance: IK03

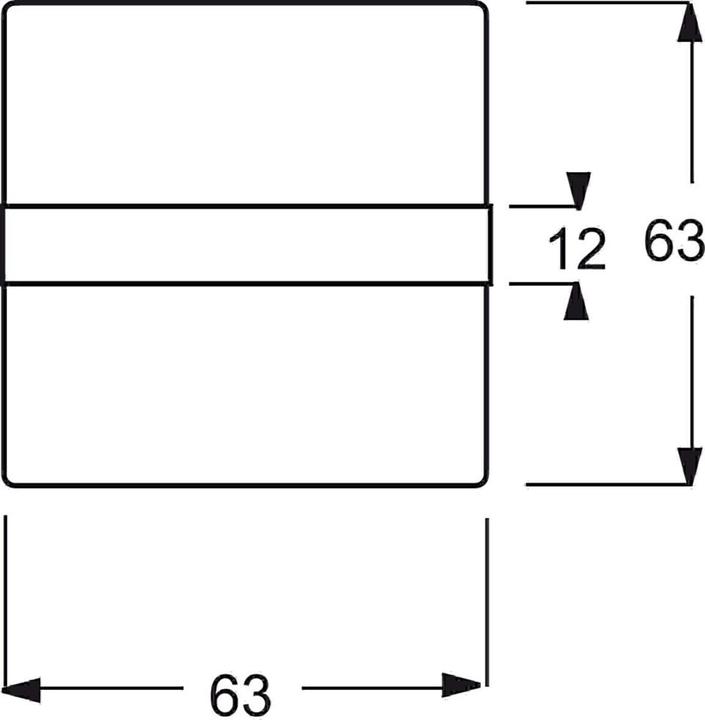

Further details: With light guide for uniform illumination of the labelling. Serves as a cover for flush-mounted off-switch, change-over switch, cross switch, and push-button. Size of inscription field: 59.7 x 11.7 mm. Suitable labelling software available. Illumination by glow lamp or incandescent lamp and LED.
EAN: 4011395056028.
