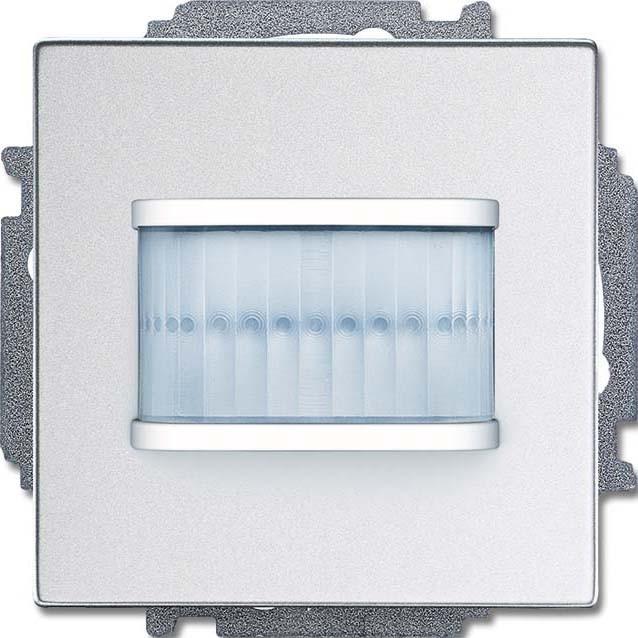

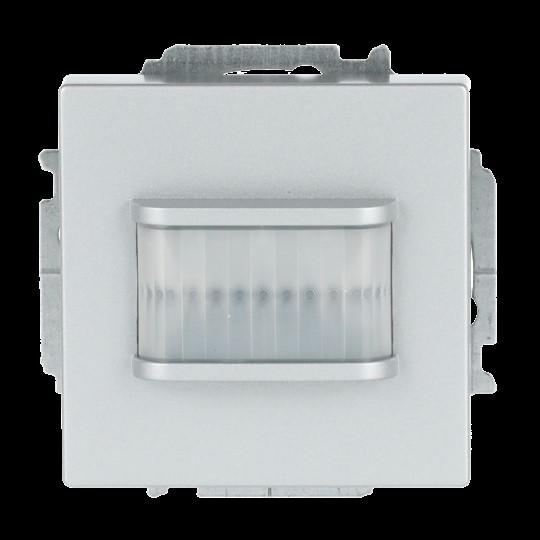

Busch-Jaeger Motion detector switching actuator
6 mColour3
In Detail
Motion detector/switch actuator 1-channel for Busch-free@home®. With select lens for detection with animal threshold. For automatic switching of Busch-free@home® actuators based on movement and brightness. The actuator's delay time can be programmed via the web interface of the system access point. Suitable for switching 127 V~/230 V~ consumers. With integrated switch actuator. The switching function is available even without prior programming (pre-configured). Configuration can be changed later via the web interface (groups, scenes). The bus connection is made via the included bus terminal. When installing in the flush-mounted box, ensure spatial separation between the bus and the 127 V/230 V installation cables! If the minimum distance is not maintained, use electronic boxes or insulation tubes. Programming is only possible with bus voltage applied via the web interface of the system access point. Design line: Platform 63, future® linear, Busch-axcent®. Design line variant: Busch-axcent®, Busch-axcent® pure. Product series: Busch-free@home®.
