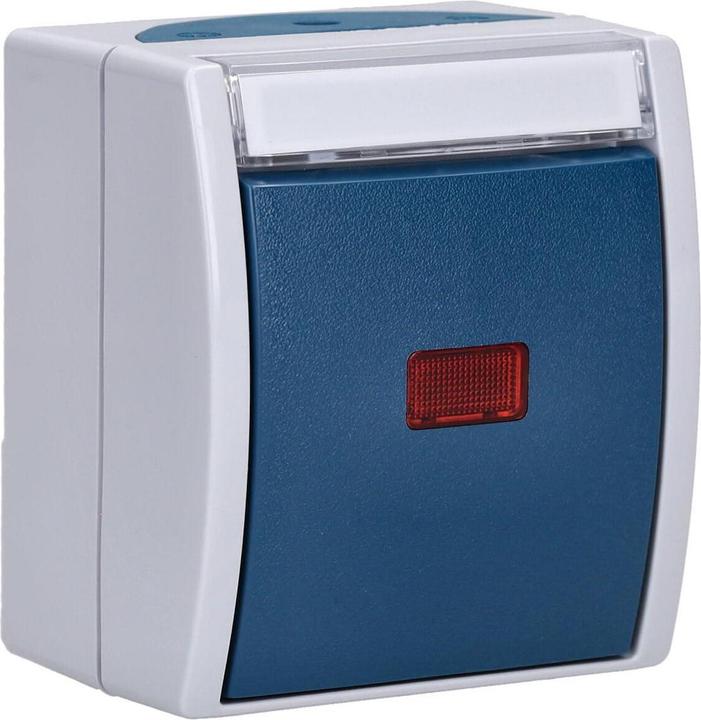

Busch-Jaeger Heater emergency switch

Busch-Jaeger Heating Emergency Switch 2601/2 SKWNH-53

Manufacturer: Busch-Jaeger
Designation: Surface-mounted heating emergency switch with nameplate
Type: 2601/2 SKWNH-53
Switching type: 2-pole switch
Operation type: Rocker/button
Composition: Base element with complete housing
Number of modules (for modular design): 1
Push button: no
Number of operating rockers: 1
Mounting type: Surface-mounted
Mounting method: Screw fastening
With mounting plate: no
Material: Plastic
Material quality: Thermoplastic
Halogen-free: yes
Antibacterial treatment: no
Surface protection: untreated
Surface finish: matte
Color: gray/blue-green
RAL number (similar): 7035
Text field/labeling area: yes
Lighting: yes
Lighting function: Control and orientation
Lighting type: other
Suitable for protection class (IP): IP44
Nominal voltage: 250 V
Rated current: 16 A
Switching current for fluorescent lamps: 10 AX
Feedback contact: no
Connection type: Plug terminal
Heating switch: no
Washing machine switch: no
Device width: 74 mm
Device height: 83 mm
Device depth: 55 mm
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no
IFTTT support available: no

Busch-Jaeger Heating Emergency Switch 2601/2 SKWNH-53: additional details
With red cap. With glow lamp. With labeling field.
Labeling field 57.8 x 9.8 mm. Label carrier can be illuminated with lighting insert 2152 NLI-53.
Switch can be illuminated by inserting lamp 8332-1, 8335-1, 8346-1, 8333-1, and 8358.
Glow lamp 8346-1 included.
EAN: 4011395992609.
