Busch-Jaeger Frame

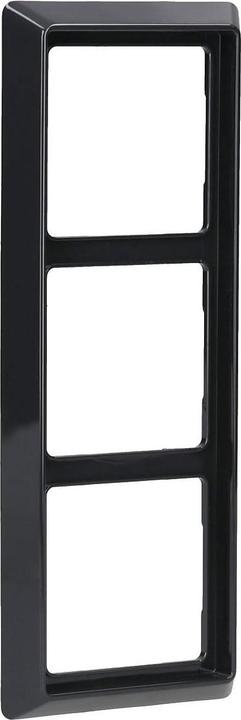

Busch-Jaeger 3-Gang Frame 2103-35

Manufacturer: Busch-Jaeger
Description: 3-gang frame in anthracite, flush-mounted, all-weather
Type: 2103-35
Number of units: 3
Mounting direction: horizontal and vertical
Number of units horizontal: 3
Number of units vertical: 3
With mounting frame: no
Flush-mounted installation: yes
Suitable for underfloor conduit box: no
Suitable for device installation channel: yes
Suitable for built-in installation: no
Text field/labeling area: no
Material: plastic
Material quality: thermoplastic
Halogen-free: yes
Antibacterial treatment: no
Surface protection: untreated
Surface finish: glossy
Color: anthracite
RAL number (similar): 7021
Transparent: no
With flip cover: no
Protection class (IP): IP44
Impact resistance: IK03
Mounting type: clamp mounting
Width: 91 mm
Height: 233 mm
Depth: 14 mm
Installation width: 70 mm
Installation height: 70 mm
Drilling diameter (opening): 71 mm

Further details: IP 44 only in combination with a rocker switch, central plate, etc., from the Allwetter 44® program.
EAN: 4011395875506.
