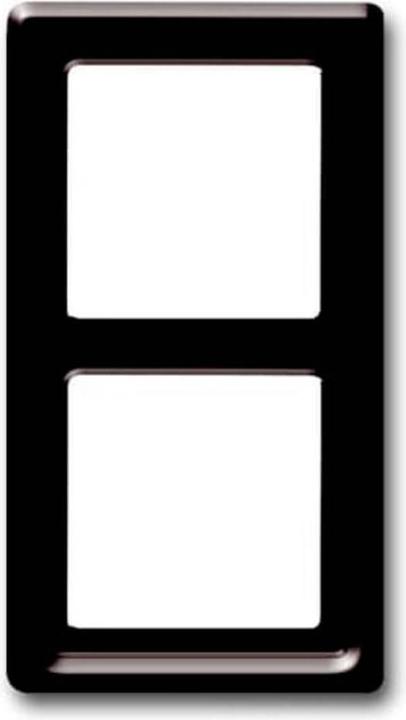

Busch-Jaeger Frame

Busch-Jaeger Frame 2-gang 2102-31

Manufacturer: Busch-Jaeger
Description: 2-gang frame brown, flush-mounted, all-weather
Type: 2102-31
Number of units: 2
Mounting direction: horizontal and vertical
Number of units horizontal: 2
Number of units vertical: 2
With mounting frame: no
Flush-mounted installation: yes
Suitable for underfloor channel box: no
Suitable for device installation channel: yes
Suitable for built-in installation: no
Text field/labeling area: no
Material: plastic
Material quality: thermoplastic
Halogen-free: yes
Antibacterial treatment: no
Surface protection: untreated
Surface finish: glossy
Color: brown
RAL number (similar): 8017
Transparent: no
With flip cover: no
Protection class (IP): IP44
Impact resistance: IK03
Mounting type: clamp mounting
Width: 91 mm
Height: 162 mm
Depth: 14 mm
Installation width: 70 mm
Installation height: 70 mm
Diameter of opening: 71 mm

Busch-Jaeger Frame 2-gang 2102-31: additional details
For covering switches, push buttons, and sockets. IP44 only in conjunction with a rocker, central plate, etc. from the Allwetter 44® program.
