Busch-Jaeger Frame

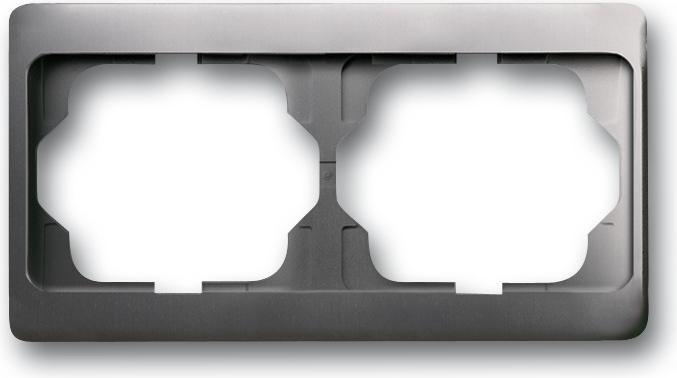

Busch-Jaeger Frame 2-fold 1722 KA-20

Manufacturer: Busch-Jaeger
Description: 2-fold frame platinum, horizontal
Type: 1722 KA-20
Number of units: 2
Mounting direction: horizontal
Number of horizontal units: 2
With mounting frame: no
Flush-mounted installation: yes
Suitable for underfloor channel box: no
Suitable for device installation channel: yes
Suitable for built-in installation: no
Text field/labeling area: no
Material: Metal
Material quality: Aluminum
Halogen-free: yes
Antibacterial treatment: no
Surface protection: painted
Surface finish: matte
Color: Platinum
Transparent: no
With flap cover: no
Protection class (IP): IP20
Impact resistance: IK03
Mounting type: Clamp mounting

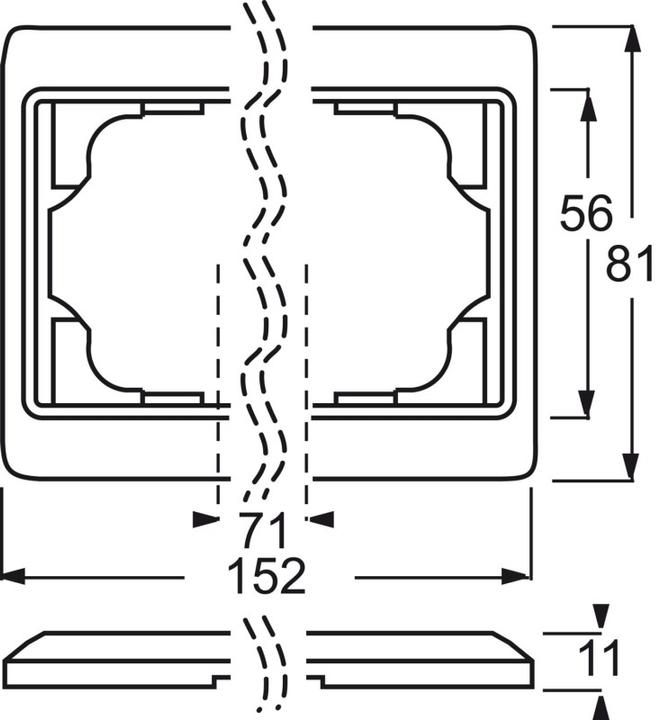

Width: 152 mm
Height: 81 mm
Depth: 11 mm
Installation width: 70 mm
Installation height: 54 mm
Drilling diameter (opening): 71 mm

Busch-Jaeger Frame 2-fold 1722 KA-20: further details on the cover frame 2-fold frame horizontal.
