Busch-Jaeger Frame

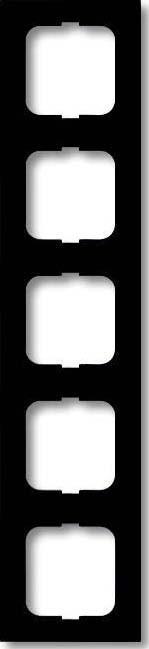

Busch-Jaeger Frame 5-fold 1725-885K

Manufacturer: Busch-Jaeger
Description: 5-fold frame in matte black, flin.
Type: 1725-885K
Number of units: 5
Mounting direction: horizontal and vertical
Number of units horizontal: 5
Number of units vertical: 5
With mounting frame: no
Flush-mounted installation: yes
Suitable for underfloor channel box: no
Suitable for device installation channel: yes
Suitable for built-in installation: no
Text field/label area: no
Material: plastic
Material quality: thermoplastic
Halogen-free: yes
Antibacterial treatment: no
Surface protection: painted
Surface finish: matte
Color: black
RAL number (similar): 9005
Transparent: no
With flip cover: no
Protection class (IP): IP20
Impact resistance: IK03
Mounting type: clamp mounting
Width: 80 mm
Height: 364 mm
Depth: 11 mm
Installation width: 63 mm
Installation height: 63 mm
Diameter of hole (opening): 71 mm

Busch-Jaeger Frame 5-fold 1725-885K: additional details
For covering switches, push buttons, and sockets. With small corner radii for cut channel covers.
