Busch-Jaeger Central disk

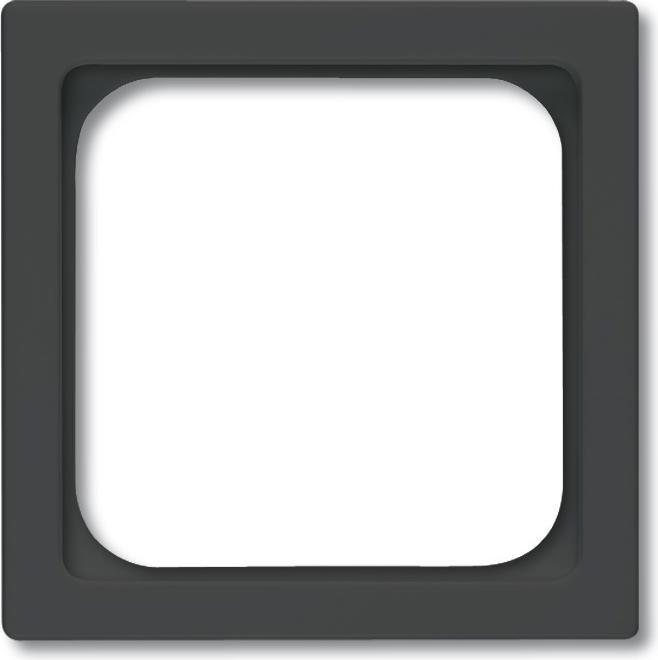

Busch-Jaeger Central Plate Black with 1746/10-885

Manufacturer: Busch-Jaeger
Description: Black central plate with TAE insert
Type: 1746/10-885
Composition: Central plate for intermediate ring
Usage: For data connection housing
Support ring: No
With dust protection: No
With flip cover: No
Outlet direction: Straight
Labeling field: Without labeling field
With print: No
Mounting type: Flush-mounted
Material: Plastic
Material quality: Thermoplastic
Halogen-free: Yes
Antibacterial treatment: No
Surface protection: Painted
Surface finish: Matte
Color: Black
RAL number (similar): 9005
Transparent: No
Mounting type: Screw mounting
Number of modules (in modular design): 1
With sockets/couplings: No
Suitable for number of sockets/couplings: 1
With strain relief: No
Shielded sockets: No
Shielded housing: No
Terminal block: No
With lighting: No
Suitable for protection class (IP): IP20
Device width: 63 mm
Device height: 63 mm
Device depth: 9.6 mm
Min. depth of device box: 32 mm

Busch-Jaeger Central Plate Black with 1746/10-885: additional details for telecommunication applications. For cover plates 50 x 50 mm, e.g., from companies like AMP, Brand-Rex, Rutenbeck, BTR, Telegärtner, etc. Cradle to Cradle® certified, sustainable product design. Platform 63, future® linear, Busch-axcent®, carat®: future® linear - matte, Busch-axcent®, Busch-axcent® pure. EAN: 4011395127193.
