Busch-Jaeger Blind push-button

Busch-Jaeger Blind Switch Insert 2022/4 UJ-64

Manufacturer: Busch-Jaeger
Description: Blind switch insert porcelain
Type: 2022/4 UJ-64
Composition: Base element with housing upper part
Execution: Single-pole switch
Number of poles: 1
Operation type: Rocker
Mechanically operable: yes
Electronically operable: no
Mounting type: Flush-mounted
Material: Other
Material quality: Other
Halogen-free: yes
Surface protection: Untreated
Surface finish: Glossy
Mounting type: Screw fastening
Connection type: Screw terminal
Color: White
RAL number (similar): 9016
Transparent: no
Text field/Labeling area: no
Suitable for protection class (IP): IP20
Rated current: 10 A
Nominal voltage: 250 V
Number of buttons: 2

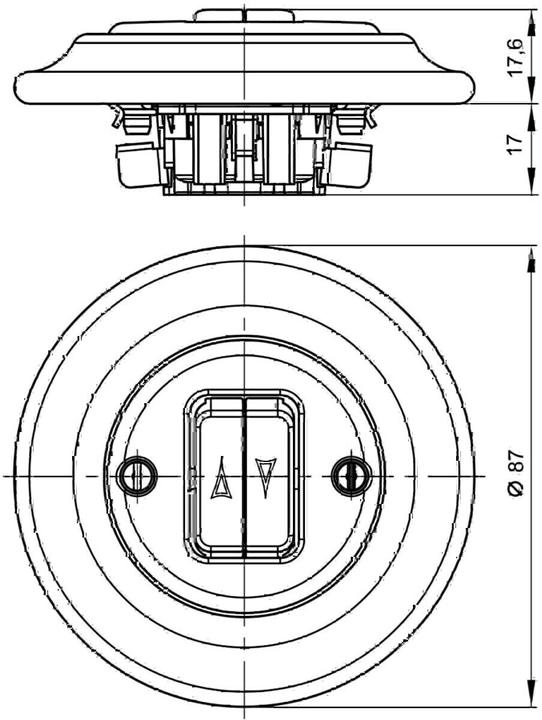

Device width: 87 mm
Device height: 87 mm
Device depth: 36 mm
Installation depth: 32 mm
Min. depth of device box: 32 mm
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no
IFTTT support available: no

Busch-Jaeger Blind Switch Insert 2022/4 UJ-64: additional details
Complete device: Insert, central plate, and frame. Vintage style with exposed housing screws. For a multiple combination (vertical or horizontal), we recommend the device box in conjunction with the spacer from KAISER.
EAN: 4011395158579.
