Busch-Jaeger 2020 US (2020US)

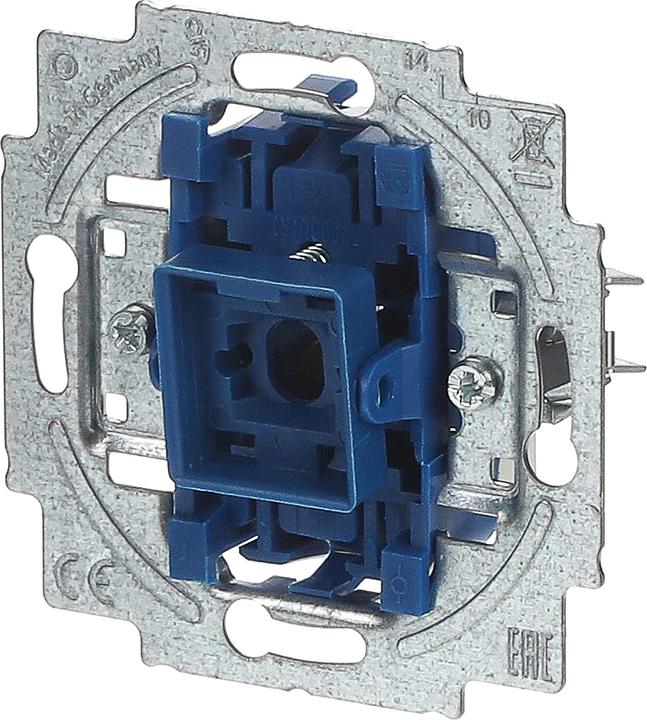

Busch-Jaeger Push Button Insert 2020 US

Manufacturer: Busch-Jaeger
Designation: Push Button Insert 1-pole Switch
Type: 2020 US
Composition: Base Element
Design: Single Push Button
Operation Type: Push Button
Number of Contacts as Switch: 1
Contactless Design: No
Number of Actuation Buttons: 1
Pole Count: 1
Nominal Voltage: 250 V
Rated Current: 10 A
With Lighting: No
With Light Source: No
With Signal Lamp: No
Feedback Contact: No
Connection Type: Plug Terminal
Mounting Type: Flush Mount
Fixing Type: Claw/Screw Fixing
Material: Plastic
Material Quality: Thermoset
Halogen-Free: Yes
Antibacterial Treatment: No
Surface Protection: Untreated
Surface Finish: Matte
Color: Blue
RAL Number (similar): 5010
Transparent: No
Text Field/Label Area: No
Printing: None
Suitable for Protection Class (IP): IP20
Device Width: 71 mm
Device Height: 71 mm
Device Depth: 40 mm
Min. Depth of Device Box: 25 mm
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT Support Available: No

Busch-Jaeger Push Button Insert 2020 US: Additional Details
For switching electrical consumers. 1-pole switch (working current). With N terminal. Rear connection with spring terminal and side spring release. Installation in flush-mounted boxes according to DIN 49073 required. Can be illuminated by inserting lamps 8350, 8352, 8353, 8337-1, 8345-1, and 8344-1, as well as LED inserts. Compatible with platforms 63, Busch-Duro 2000 SI, Reflex SI, Busch-balance SI, Busch-art linear, future linear, Busch-axcent, solo, pur stainless steel, carat, Busch-dynasty, All-Weather 44 (IP44), alpha: Busch-Duro 2000 SI, Busch-Duro 2000 SI Linear, Reflex SI, Reflex SI Linear, Busch-art linear - with decorative ring, Busch-art linear - real material, future, future linear, Busch-axcent, Busch-axcent pur, alpha nea, alpha exclusive.
EAN: 4011395045503.
