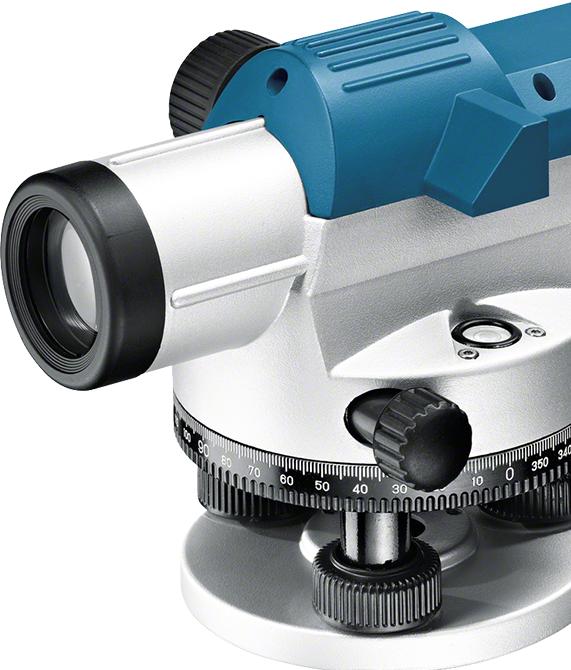

Robust and reliable – optimally suited for outdoor use. Ideal for outdoor applications due to a sturdy housing with dust and splash protection (IP 54). Bright lens for a sharp image of the target. Secure transport with a locking mechanism for the compensator. Target collimator for coarse alignment. Pentaprism for good readability of the leveling bubble. Upright image. Large focusing knob for easy alignment. Bright lens for a sharp image of the target (measuring staff). Endless angle/degree adjustment via slip clutch.
Technical specifications:
Measurement unit: 360 degrees
Magnification: 32 x
Leveling accuracy: 1 mm at 30 m
Working range: 120 m
Dust and splash protection: IP 54
Tripod thread: 5/8"
Operating temperature: -10 to 50 °C
Storage temperature: -20 to 70 °C
Length: 215 mm
Width: 135 mm
Height: 145 mm
Weight, approx.: 1.7 kg.
Laser range | 120 m |
Power supply | None |
Scope of delivery | Allen key, Lens protector, Plumb bob, Suitcase |
Item number | 6514417 |
Manufacturer | Bosch Professional |
Category | Line lasers |
Manufacturer no. | 0601068500 |
Release date | 5.9.2017 |
Sales rank in Category Line lasers | 56 of 1081 |
External links |
Colour | Blue |
Exact colour description | Blue |
Laser range | 120 m |
Margin of error | 30000 mm |
Levelling range | 360° |
Calibrated according to | Factory standard (without certificate) |
Additional properties | Splash water |
Power supply | None |
Battery equipment | No batteries supplied |
Country of origin | China |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Allen key, Lens protector, Plumb bob, Suitcase |
Width | 135 mm |
Weight | 1500 g |
Length | 215 mm |
Height | 145 mm |
Length | 30 cm |
Width | 21 cm |
Height | 21 cm |
Weight | 2.75 kg |
