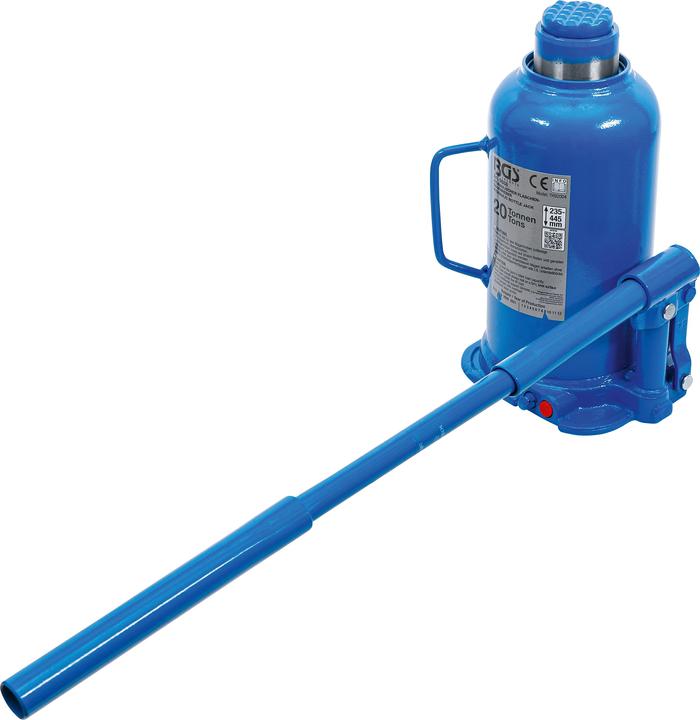

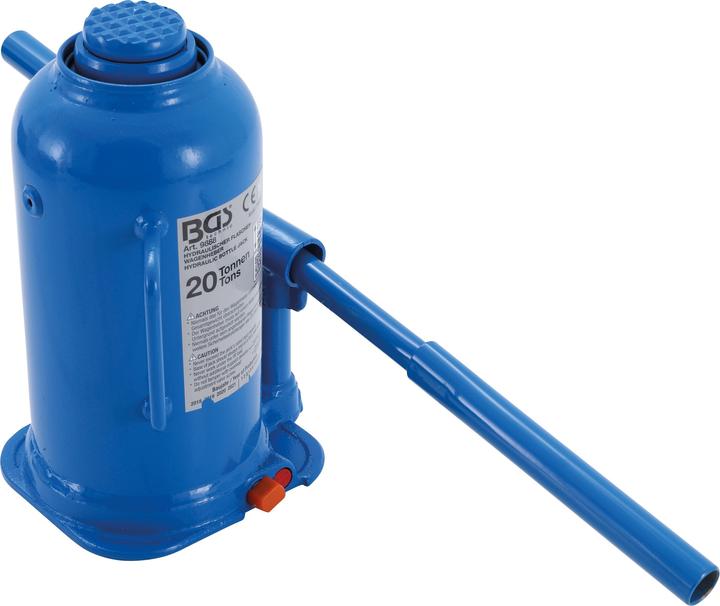

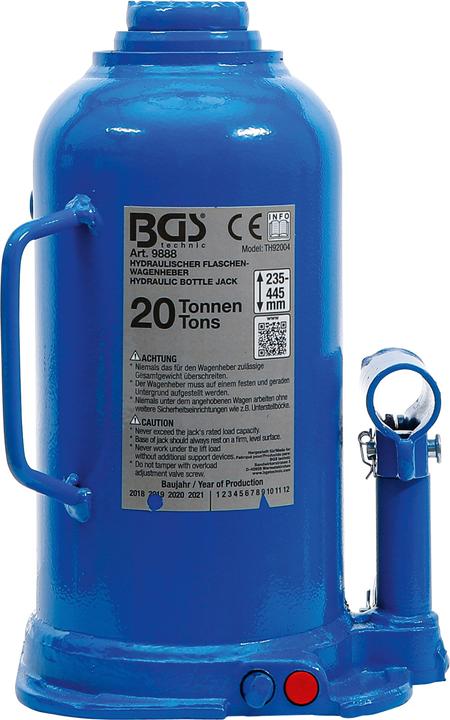

BGS Hydraulic Bottle Jack 20 t

Delivered between Tue, 12.5. and Tue, 19.5.
More than 10 pieces in stock at supplier
free shipping

Load capacity6

Product details

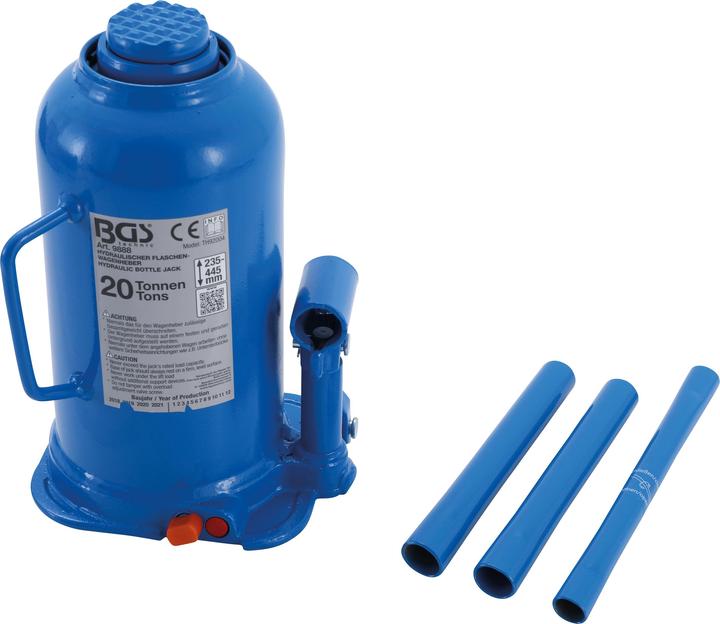

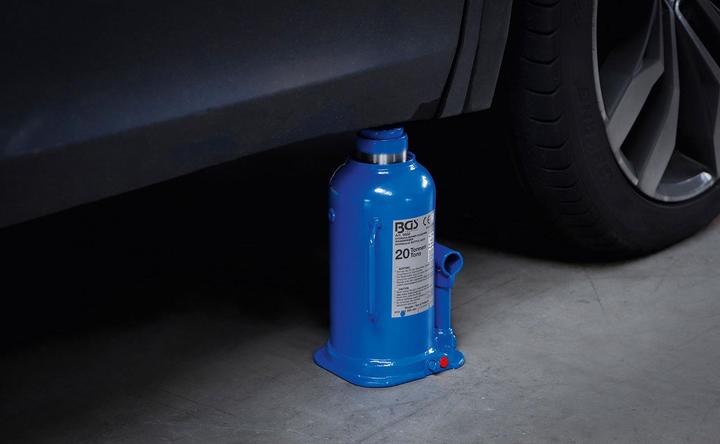

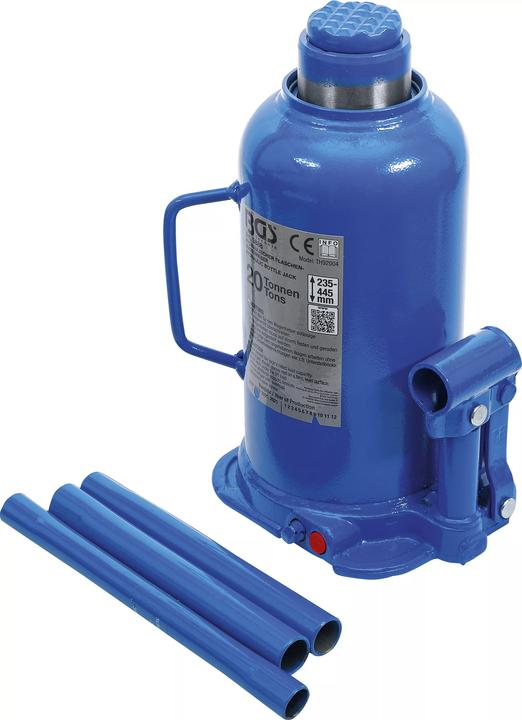

For lifting vehicles, machines, trailers, and motorhomes. Ideal for tire changes, repair work, or emergencies. Equipped with a safety valve. Includes a detachable telescopic piston rod. Sturdy, welded steel construction. High stability and robustness due to a large base plate. Suitable for high vehicle weights in tight spaces.

Technical specifications:
Dimensions of base plate (W x D x H): 154 x 124 mm
Gross weight: 8980 g
Diameter of receiving plate: 44.5 mm
Weight (without lever): 9 kg
Handle (diameter x length x thickness): 20 x 170 x 1.8 | 15.6 x 22 x 1.4 | 20 x 170 x 1.8 mm
Lever length: 496 mm

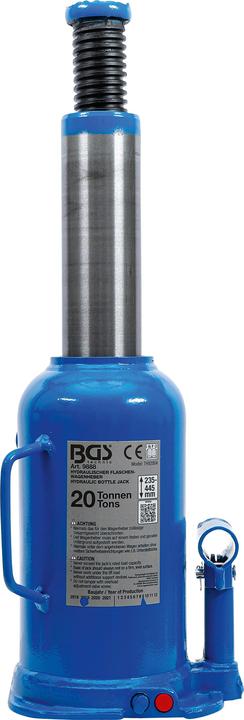

Max height: 445 mm
Min height: 235 mm
Lifting height: 150 mm
Lifting height per pump stroke: 0.6 mm
Spindle length: 80 mm
Piston diameter: 53 mm
Max load capacity: 20 t
Wall thickness of lever: 1.8 | 1.4 | 1.8 mm.

Key specifications

Load capacity
20000 kg
Max. Working height
44.50 cm
Min. working height
23.50 cm
Weight
8.93 kg

General information

Item number
22196173
Manufacturer
BGS
Category
Jacks
Manufacturer No.
9888
Release date
15.9.2022
Sales rank in Category Jacks
106 of 1031

Colour

Colour
Grey

Material

Material group
Metal
Material
Metal

Jack properties

Load capacity
20000 kg
Max. Working height
44.50 cm
Min. working height
23.50 cm

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
20.72 kg
Climate contribution
CHF 0.49

Product dimensions

Length
15.40 cm
Width
12.40 cm
Height
15 cm
Weight
8.93 kg

Package dimensions

Length
25.70 cm
Width
17.30 cm
Height
14.80 cm
Weight
8.75 kg

30-day right of return
24 Months Warranty (Bring-in)
