Product details

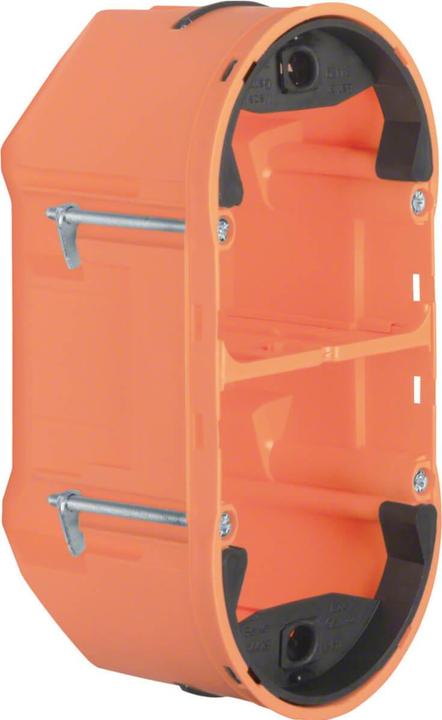

Berker mounting box 2gang 1870
Manufacturer: Berker
Designation: Mounting box 2gang
Type: 1870
Mounting type: Cavity wall
Shape: Oval
Design: Device junction box
Design: Single
With rotating ring: No
Couplable: No
Equipment: Without
Diameter: 68 mm
Length: 139 mm
Width: 68 mm
Depth: 75 mm
Inside depth: 73 mm
For number of service outlets: 2
Mounting of devices: Screw
With screws: Yes
Housing feed-through through knock-out opening: Yes
Housing feed-through through sealing diaphragm: No
Housing feed-through through pipe socket: No
Housing feed-through through stepped diaphragm: No
For pipe diameter: 20 mm
Suitable for cable diameter: 11 mm
Pipe locking: No
Pipe locking optional: No
Entry from rear: No
Number of entries: 12
Material: Plastic
Halogen-free: No
Surface protection: Untreated
Color: Orange
Protection class (IP): IP3X
Protection class (NEMA): 1
Cover design: Without
Transparent cover: No
Cover fixing: Other
Sealable: No
Functional integrity: Without
With shielding: No
Air-tight: No
Max. conductor cross-section: 2.5 mm²
Terminal position-fixed: Yes
Luminaire hook fastening: No
Spigot: Other
With nail lugs: No
Special application: Without

Berker flush-mounting box 2gang 1870: Further details
Flush-mounting box 2gang TS Sensor orange, matt. Recessed box 2gang for glass sensor. For flush and cavity wall mounting, mounting flush with wall or with adapter ring.
EAN: 4011334294092.

Key specifications

Height
139 mm
Width
68 mm
Length
139 mm

General information

Item number
20022569
Manufacturer
Berker
Category
Junction box
Manufacturer no.
1870
Release date
16.3.2022
External links
Manufacturer's site (de)

Colour

Colour
Orange
Exact colour description
Orange

Material

Material group
Plastic
Material
Plastic

Junction Box Features

mounting style
Wall-mounted
Area of use
Inside

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂ emissions
0.87 kg
Climate contribution
CHF 0.11

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Height
139 mm
Width
68 mm
Length
139 mm
Diameter
68 mm
