Berker Glass sensor

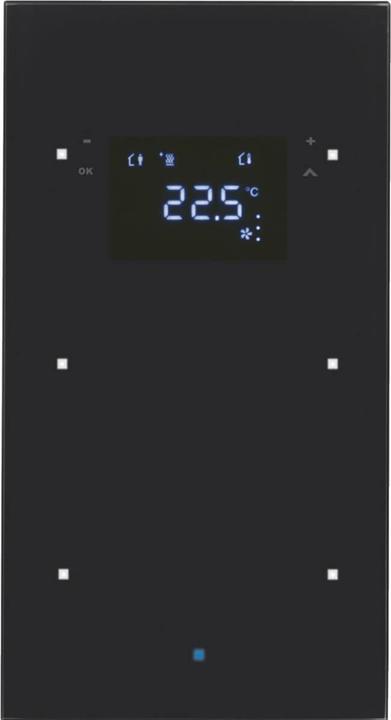

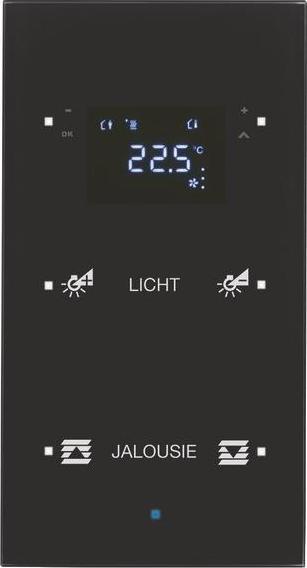

Glass sensor with temperature controller TS configured, black. The glass sensor features labeling and a surrounding bevel. Custom labels can be created using an online configuration software. There are no visible fastening elements, and the sensor has four operating surfaces as well as an LED display that shows operational mode, controller lock, room and outside temperature, and time (timer required). Additionally, there are two extra display sensor surfaces, a blue operational LED, and four white status LEDs.

The flush-mounted installation is done in a special mounting box that allows for height and lateral adjustment. An adapter ring provides disassembly protection and shadow gap formation. The sensor is suitable for vertical mounting and comes with a disassembly tool. It includes an integrated bus coupler and a bus connection via terminal blocks.

The display menu is parameterizable and allows for the operation of switching, push-button, dimming, blind, and room temperature controller functions. The sensor can provide values for dimming, position, brightness, and temperature in 1 and 2 bytes. The single and dual surface operation is also parameterizable, and the sensor surfaces can be locked via objects.

The controller operating modes include comfort, standby, night, and frost/heat protection modes. The sensor is suitable for heating and/or cooling operation with or without an additional stage, and the control parameters for heating or cooling bodies are preset. The control can be continuous (PI) or switching (2-point), and temperature measurement is done via internal and/or external connectable sensors with averaging. There are reporting objects for heating and cooling, as well as a valve protection function and an object for the controller status. A button lock function is also available.
