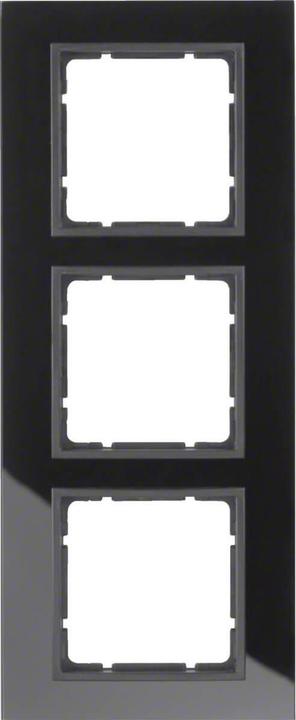

Berker Glass frame

Berker glass frame 10136616
Manufacturer: Berker
Designation: Glass frame black 3-gang
Type: 10136616
Number of units: 3
Mounting direction: Horizontal and vertical
Number of units horizontal: 3
Number of units vertical: 3
Number of switch inserts: 3
Flush mounting: Yes
Suitable for underfloor trunking: No
Suitable for device installation trunking: Yes
Suitable for recessed installation: Yes
Text field/inscription area: No
Material: Glass
Material grade: Other
Halogen-free: Yes
Antibacterial treatment: No
Surface protection: Untreated
Surface finish: Glossy
Color: Black
RAL number (similar): 9005
Transparent: No
With hinged cover: No
Protection class (IP): IP20
Mounting type: Clamp mounting
Width: 232 mm
Height: 95 mm
Depth: 9.6 mm
Installation width: 56 mm
Installation height: 56 mm
Diameter hole (opening): 0 mm

Berker glass frame 10136616: More details
Glass frame 3-gang, W.7, Glass black/anthracite matt. Cover frame for vertical and horizontal mounting for use of central pieces anthracite, (W x H) 95 x 232 mm. Flush-mounted installation, surface/design program, 3-fold. Material: Thermally tempered glass and plastic, thermoplastic, shatterproof, halogen-free. EAN: 4011334304005.
