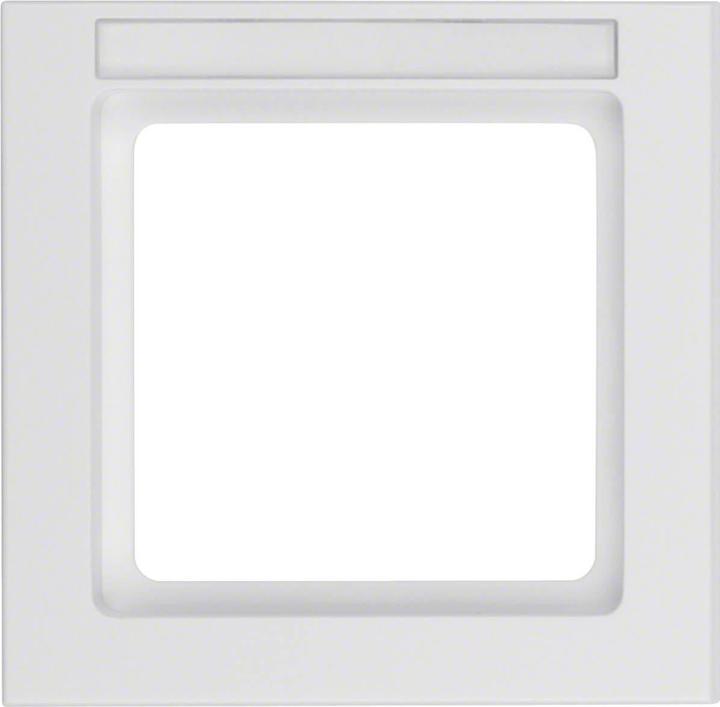

Berker Frame

Berker Frame 1-gang pws with labeling field

Manufacturer: Berker
Description: 1-gang frame pws with labeling field
Type: 10516099
Number of units: 1
Mounting direction: horizontal and vertical
Number of units horizontal: 1
Number of units vertical: 1
Number of switch inserts: 1
With mounting frame: no
Flush-mounted installation: yes
Suitable for flush-mounted conduit box: no
Suitable for device installation channel: yes
Suitable for built-in installation: yes
Text field/labeling area: yes
Material: plastic
Material quality: thermoplastic
Halogen-free: yes
Antibacterial treatment: no
Surface protection: untreated
Surface finish: matte
Color: white
RAL number (similar): 9010
Transparent: no
With flip cover: no
Protection class (IP): IP20
Impact resistance: IK02
Mounting type: clamp mounting
Width: 80.75 mm
Height: 80.75 mm
Depth: 9.9 mm
Installation width: 59.3 mm
Installation height: 59.3 mm
Diameter of opening (hole): 0 mm

1-gang frame with labeling field Q.3 polar white, suitable for covers and flush-mounted inserts, also suitable for cable ducts. Attachment of the labeling field to the insert or locking in the recess of the frame.
EAN: 4011334357933.
