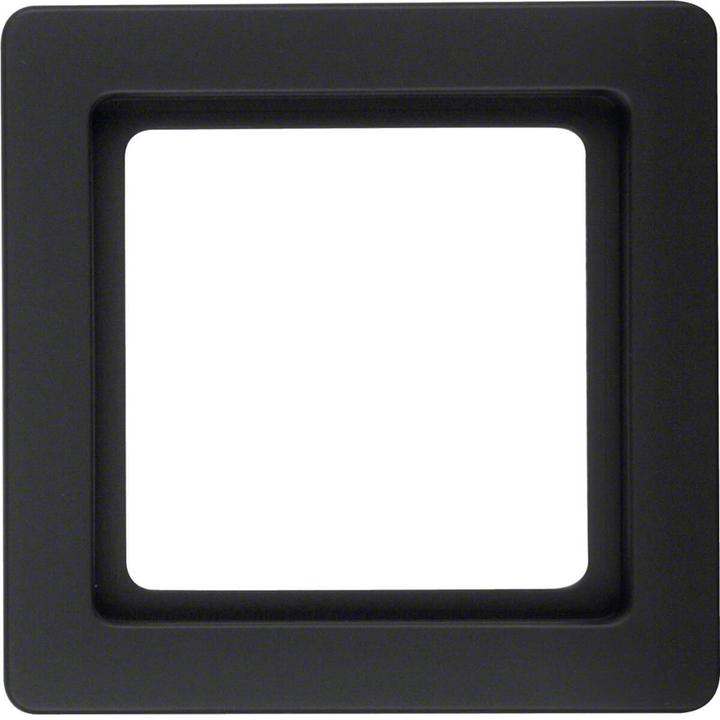

Berker Frame

Berker Frame anth/sa 10116086

Manufacturer: Berker
Description: Frame anth/sa single
Type: 10116086
Number of units: 1
Mounting direction: horizontal and vertical
Number of units horizontal: 1
Number of units vertical: 1
With mounting frame: no
Flush-mounted installation: yes
Suitable for underfloor channel box: no
Suitable for device installation channel: yes
Suitable for built-in installation: yes
Text field/labeling area: no
Material: Plastic
Material quality: Duroplast
Halogen-free: yes
Antibacterial treatment: no
Surface protection: painted
Surface finish: matte
Color: anthracite
RAL number (similar): 7021
Transparent: no
With hinged cover: no
Protection class (IP): IP20
Impact resistance: IK02
Mounting type: clamp mounting
Width: 80.5 mm
Height: 80.5 mm
Depth: 9.9 mm
Installation width: 59.3 mm
Installation height: 59.3 mm
Drilling diameter (opening): 0 mm

The single frame Q.1 in anthracite from the Berker series offers flexibility with the option for vertical or horizontal mounting. It is compatible with various flush-mounted inserts and covers for installation switch programs. The frame is made of halogen-free plastic, enhancing safety during processing and use. Ideal for integration into modern interiors, it supports an aesthetic and functional installation of switches and sockets.
