Berker 75164593

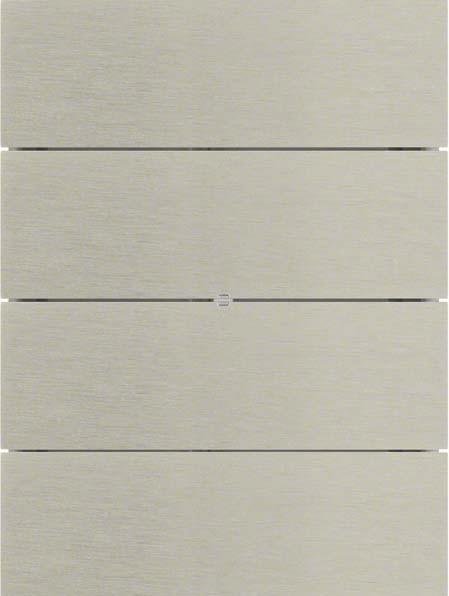

Touch Sensor 4-fold Comfort B.IQ Stainless Steel. The 4-fold Comfort B.IQ touch sensor features a disassembly protection as well as an operating LED and eight status LEDs. It is designed for flush-mounted installation and serves as a user module for instabus. The touch sensor is mounted on a bus coupler. Disassembly protection is achieved by securing the touch sensor to the bus coupler with screws. Data exchange between the touch sensor and the bus coupler occurs via the user interface (AST). Each button press on the touch sensor prompts the bus coupler to generate a telegram and send it onto the bus. The telegram format depends on the application parameterization. Depending on the selected parameterization, switching, dimming, blind control, and value transmitter functions can be combined in any way.

Application features: Button functions: buttons, switching, toggle operation, dimming, single and double surface operation, blind control single and double surface operation, value transmitter/light scene secondary function with 1-byte value transmitter function, light scene recall with or without memory function, brightness value transmitter, temperature value transmitter, 2-byte value transmitter, cyclic sending, control function, forced control. Additional features: Two operating levels, second operating level with selectable reduced functionality, switching of operating levels manually via key code or via object. LED: Status LED for each button, operating LED. Disassembly protection: with mechanical and software-controlled disassembly protection.
