Berker 6719323512

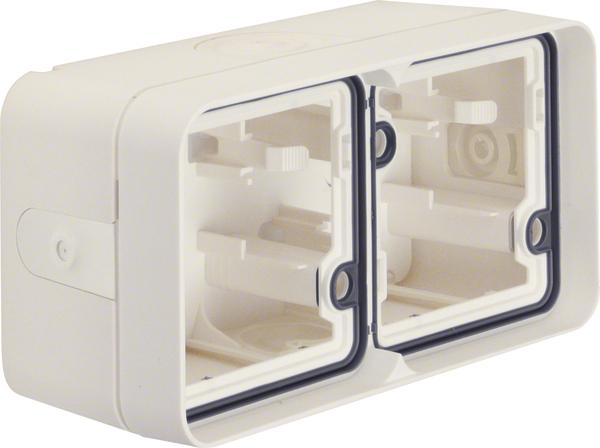

Berker housing with frame 6719323512

Manufacturer: Berker
Description: Housing with frame
Cable entry: pws
Type: 6719323512
Configuration: Surface-mounted housing
Number of units: 2
Mounting direction: horizontal
Material: Plastic
Material quality: Thermoplastic
Halogen-free: yes
Surface protection: untreated
Surface finish: matte
Color: white
RAL number (similar): 9010
Transparent: no
With cover frame: yes
With channel entry: yes
With cable entry: yes
With screw entry: no
Protection class (IP): IP55
Device width: 147 mm
Device height: 76 mm
Device depth: 56 mm

Berker housing with frame 6719323512: additional details
Two-fold horizontal housing base with frame, 4 cable entries AP W.1 polar white. Two-fold horizontal housing with frame AP. For horizontal mounting, with 4 cable entries, one entry for 2 cables and one entry for cable or pipe. The lateral arrangement of the upper/lower cable entry makes it particularly suitable for installation next to door frames or similar. The additional lateral cable entries make it especially suitable for, for example, workbenches. Full-area seal under the housing base for sealing the rear of the housing, a Wago 2-wire connection terminal for wiring included, two snap-in places for Wago 2-wire connection terminals in the housing base. The protection degree IP55 is only achieved when mounted with a modular insert AP/UP from the W.1 product line.
