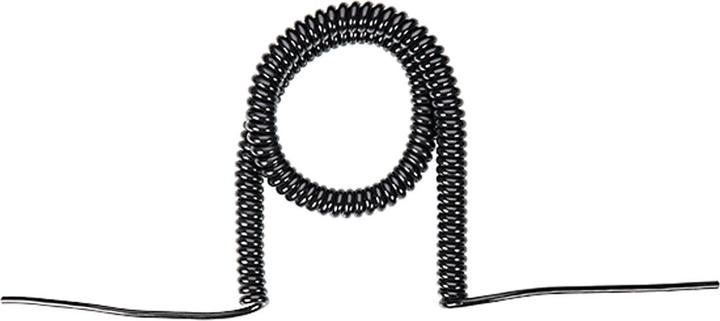

Bachmann Spiral line

5 m
CHF11.58/1m
Ratings
BrandMore from Bachmann
Delivered between Wed, 6.5. and Mon, 11.5.
More than 10 pieces in stock at supplier
free shipping

Product details

Bachmann Spiral Cable PUR 692.181

Manufacturer: Bachmann
Description: Spiral cable PUR 3x1.5/1.0m black
Type: 692.181
Conductor nominal cross-section: 1.5 mm²
Conductor Class Kl.5: fine-stranded
Number of conductors: 3
Insulation material of the conductor: Polyvinyl chloride (PVC)
Conductor marking: Color
With protective conductor: yes
Sheath material: Polyurethane (PUR)
Sheath color: black
Spiral length (closed): 1000 mm
Spiral length (extended): 5000 mm
Flame retardant: according to IEC/EN 60332-1-2
Outer diameter approx.: 8 mm
Permissible cable outer temperature during installation/handling: -5 to 70 °C
Nominal voltage U0: 230 V
Nominal voltage U: 500 V

Bachmann Spiral Cable PUR 692.181: additional details
Power distributor SPIRAL CABLE
Power cable 1,000 mm, 5,000 mm, 29 mm, 13 mm
YMH11Y-J 3G 1.5 mm² black, 200 mm straight, smooth cut, unpackaged
EAN: 4016514005277.

Key specifications

Exact colour description
Black
Cable cross section
1.50 mm²
Nominal voltage U
500 V
Nominal voltage U0
230 V
Cable length
5 m

General information

Item number
21350232
Manufacturer
Bachmann
Category
Cable conductors
Manufacturer no.
692.181
Release date
29.6.2022

Colour

Colour
Black
Exact colour description
Black

Material

Material group
Plastic
Material
Polyurethane (PUR)

Cable properties

Cable cross section
1.50 mm²
Number of cores
3x
Nominal voltage U
500 V
Nominal voltage U0
230 V

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
3.69 kg
Climate contribution
CHF 0.11

Product dimensions

Cable length
5 m
Outside diameter
8 mm

Package dimensions

Length
30.70 cm
Width
23.60 cm
Height
5.70 cm
Weight
776 g
