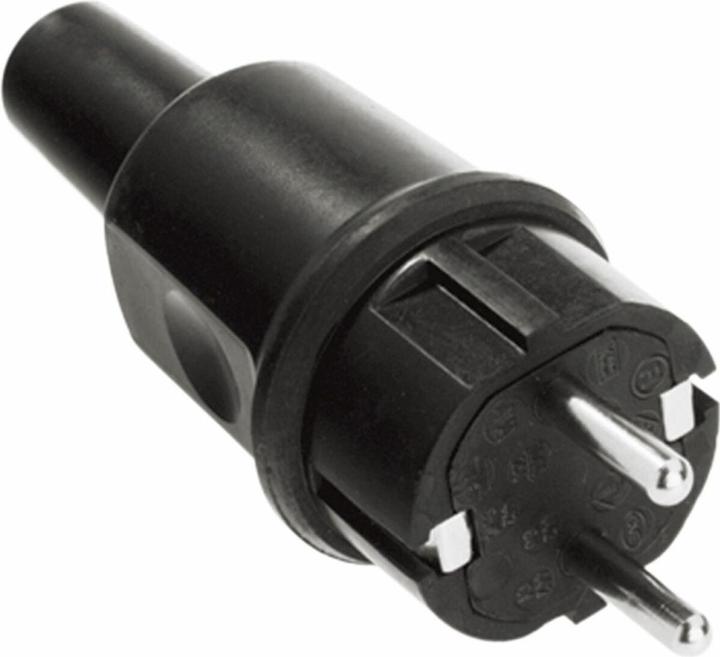

Bachmann Electrical power plug
CEE 7/4More than 10 pieces in stock at supplier
Product details
The Bachmann electric plug, model 913.173, is a robust and reliable protective contact plug designed for use in harsh conditions. Made from high-quality solid rubber and silicone, this plug not only offers high resistance to mechanical impacts but also provides effective splash water protection according to IP44. With a rated voltage of 250 V and a rated current of 16 A, it is ideal for use in industrial and commercial applications. The plug is equipped with a standardized snap-lock mechanism that ensures a secure connection. The side screw connection and socket terminals allow for easy installation on cables up to a cross-section of 3G2.5 mm². The strain relief ensures that the cable connection is not damaged even with frequent bending and movement.
- Splash water protection according to IP44 for outdoor use
- Robust construction made of solid rubber and silicone
- Easy installation through side screw connection and socket terminals
- Suitable for cables up to H07RN-F 3G2.5 mm².
Exact colour description | Black |
Connection type | Male plug |
Plug + Socket Type | CEE 7/4 |
Nominal voltage | 250 V |
Nominal current | 16 A |
Number of cores | 2x |
Protection type (IP code) | IP44 |
Item number | 10059038 |
Manufacturer | Bachmann |
Category | Power plugs + connectors |
Manufacturer No. | 913.173 |
Release date | 5.11.2018 |
Sales rank in Category Power plugs + connectors | 180 of 3146 |
Colour | Black |
Exact colour description | Black |
Material group | Plastic |
Material | Rubber, Silicone |
Connection type | Male plug |
Plug + Socket Type | CEE 7/4 |
Nominal voltage | 250 V |
Nominal current | 16 A |
Number of cores | 2x |
Protection type (IP code) | IP44 |
Country of origin | China |
CO₂ emissions | 7.83 kg |
Climate contribution | CHF 0.19 |
Length | 109 mm |
Width | 42 mm |
Height | 109 mm |
Weight | 70 g |
Length | 12 cm |
Width | 6 cm |
Height | 6 cm |
Weight | 50 g |
