Autosolar Solar panel

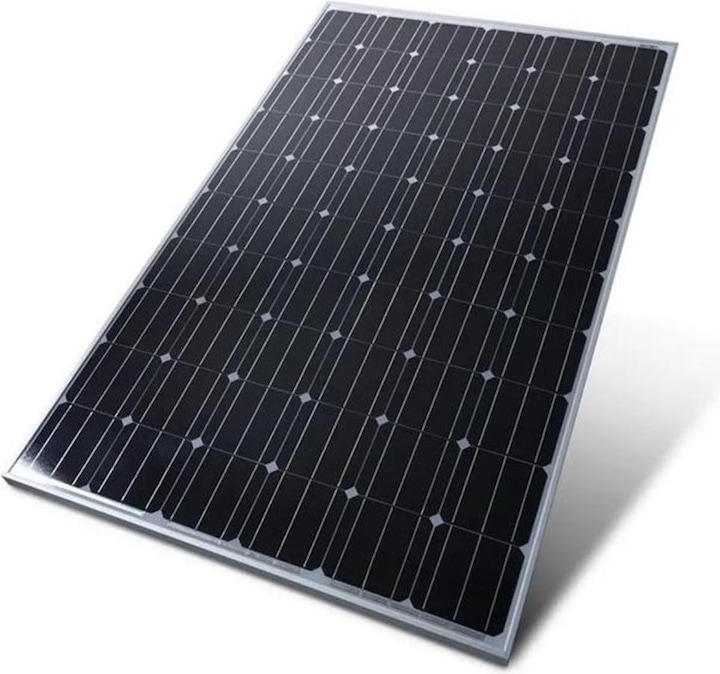

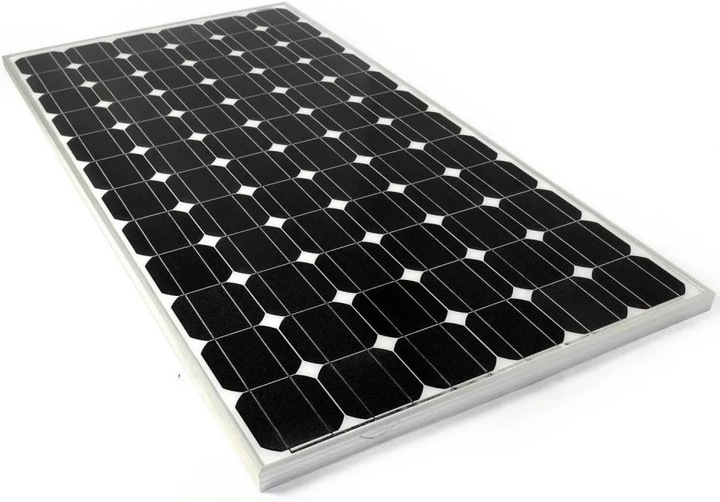

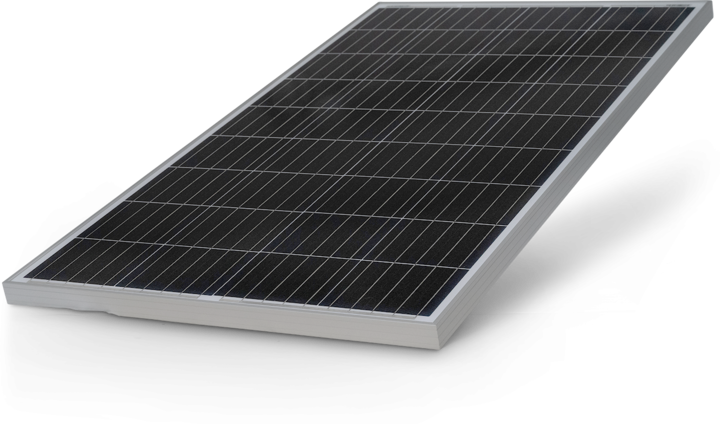

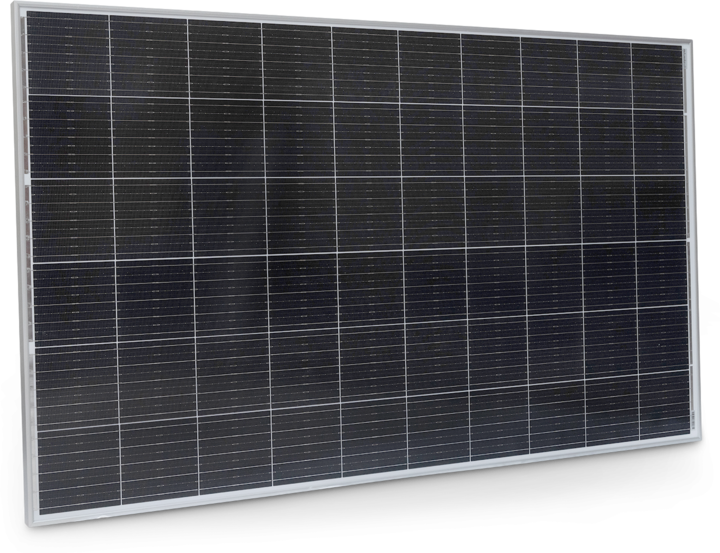

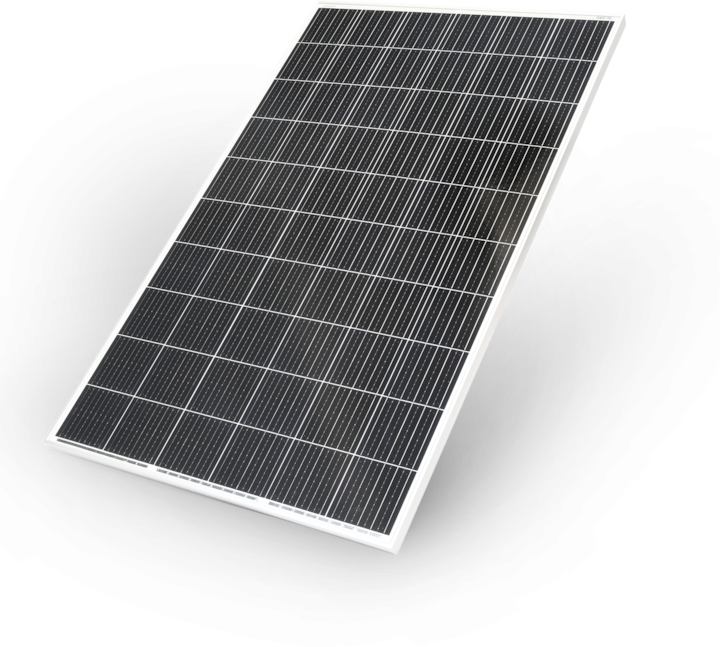

335W Solar Panel Monocrystalline

The stable solar panel from AutoSolar has a peak power of 335W and is made from high-quality monocrystalline solar cells from SolarWorld. It is perfect for use in motorhomes, boats, and as balcony power plants.

Well Protected

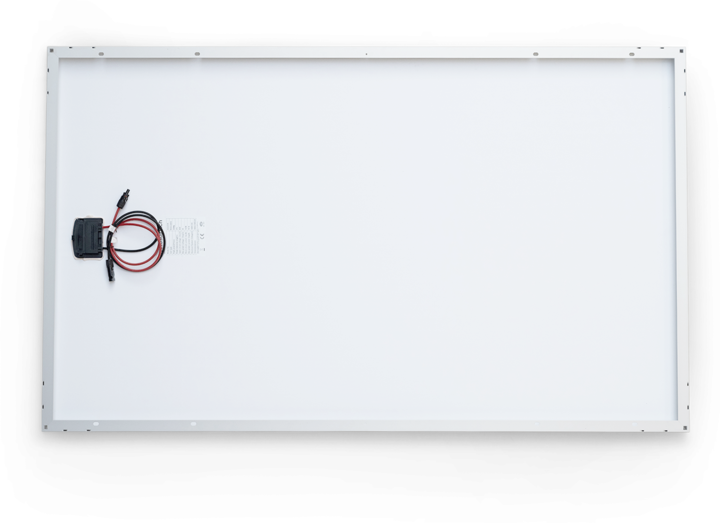

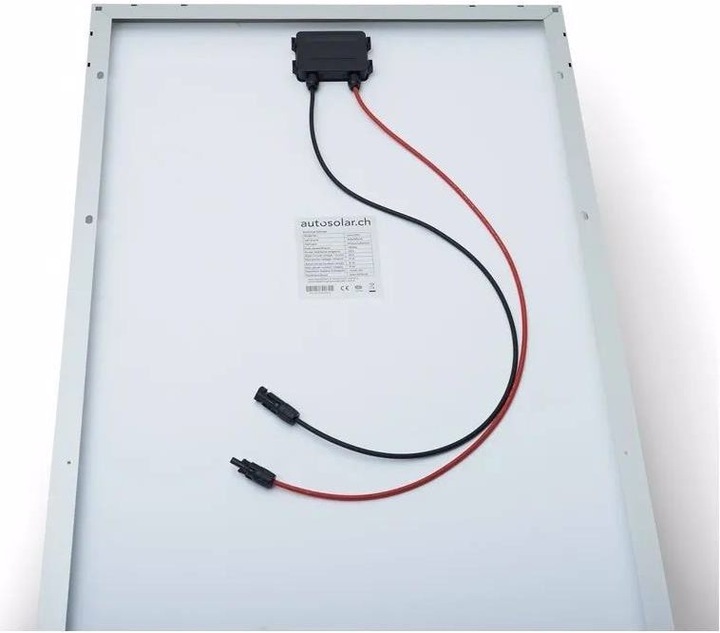

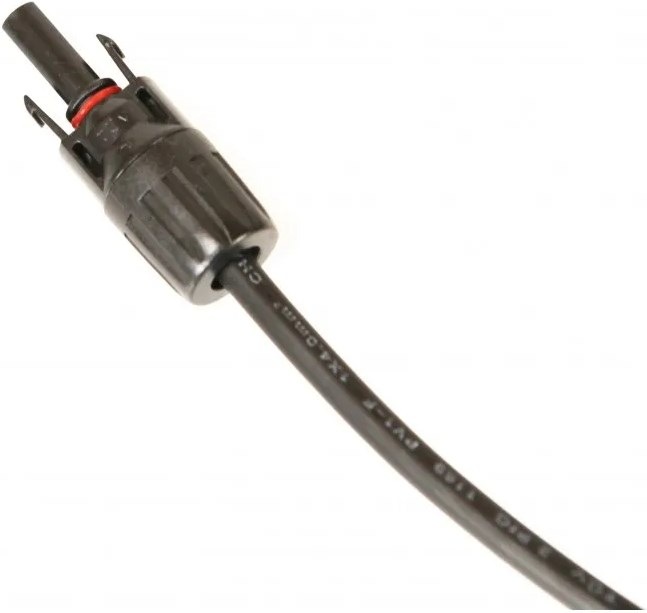

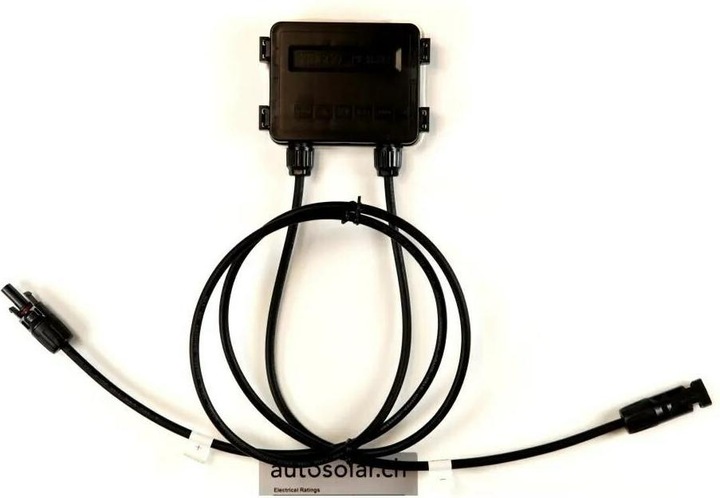

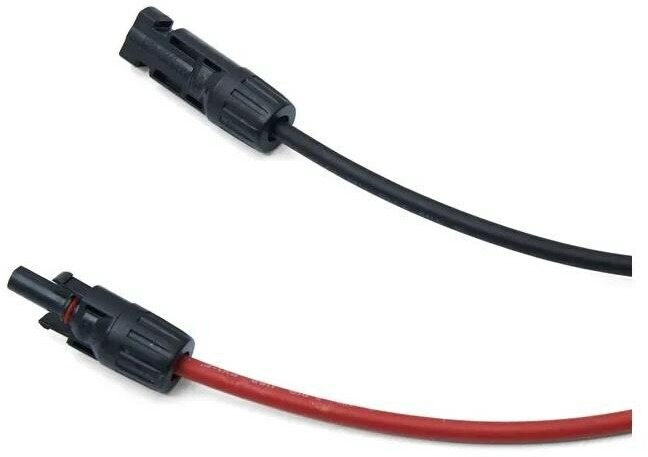

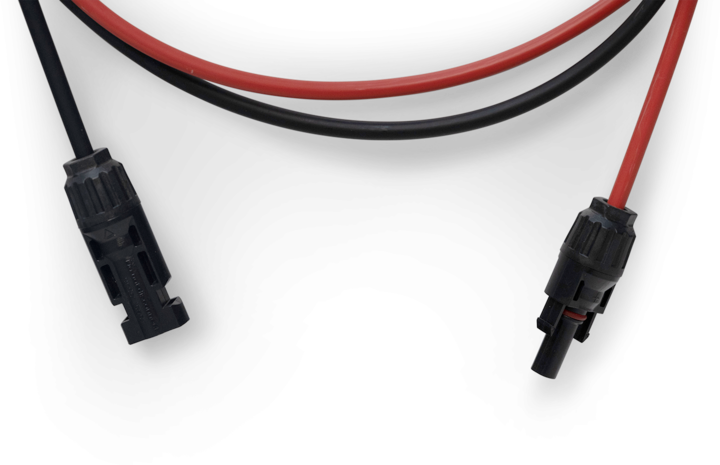

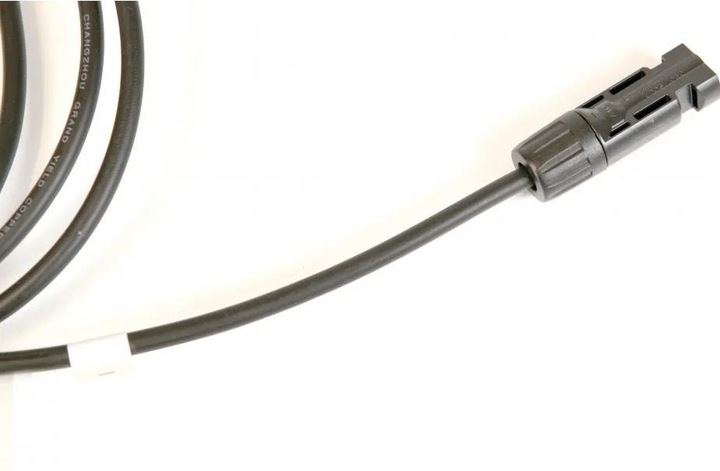

The modules are manufactured on precision machines and equipped with anodized universal frames and hail-resistant safety glass. On the back, there is a waterproof junction box IP65, where the connection cables are secured. 60 monocrystalline cells are connected in series, making it ideal for 12V battery charging. We have these quality modules produced under our strictest quality control. Special emphasis is placed on performance and the best workmanship, which we continuously monitor. This is not cheap merchandise, but rather the highest quality and controlled goods.

Installation

The AutoSolar 335W solar panel can be glued directly to the roof with our mounting spoilers and Sika554 or screwed to the wall with our Z-brackets.

Technical Data:

• Maximum Power (+/- 5%) - Pmax 335 W
• Open Circuit Voltage - Voc 38.8 V
• Short Circuit Current - Isc 10.96 A
• Maximum Power Voltage (Vpm) 33.0 V
• Maximum Power Current (Imp) 10.15 A
• Maximum System Voltage 1000 VDC
• Length 1660 mm
• Width 1000 mm
• Height 40 mm
• Weight 17.8 kg
• Number of Cells 60

AutoSolar Recommends

Are you looking for a stable, affordable, and high-quality solar module for your camper, alpine hut, or boat? With a classic solar panel from AutoSolar, you can implement your solar project. Due to our variety of different sizes and power outputs, we can assemble a system according to your wishes. Feel free to contact us for advice.
