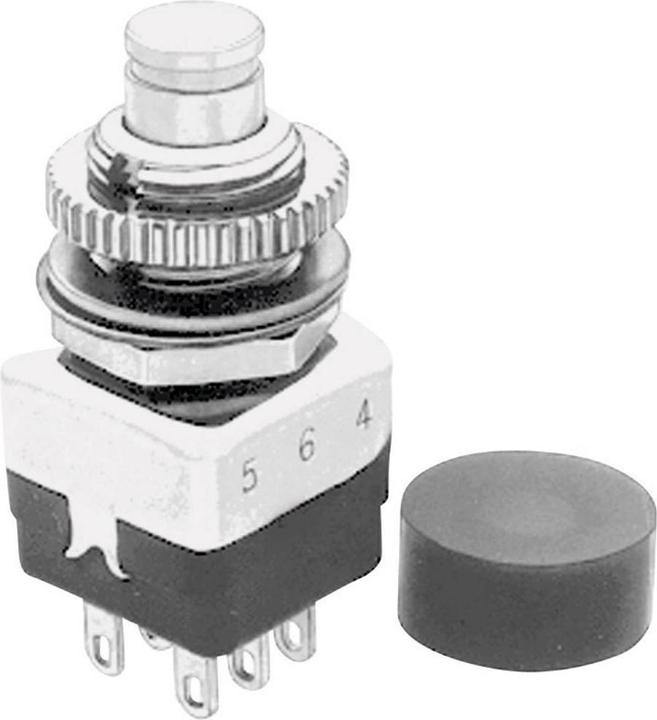

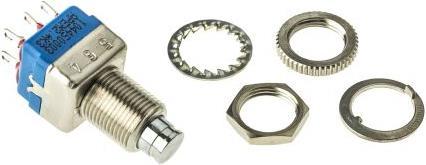

APEM DPDT panel mount pushbutton switch
Minimum order 2More than 10 pieces in stock at third-party supplier
Product details
Switching sequence: Push button
Contact arrangement: Double-pole On/Off switch (DPST)
Mounting type: Panel mount
Cutout diameter of the plate: 10.2 mm
Rated current of the contact: 3 A at 24 V dc
Color of the actuator: Silver
Contact material: Silver
Push button of the 10400 series, 10 mm. This tactile push button switch from Apem is available as a single-pole switch or as a double-pole switch. Thanks to the epoxy-sealed solder terminals in the switch, this compact panel-mount switch simplifies installation. The 10400 series push button features a small metal actuator that can be covered with interchangeable colored plastic caps, sold separately. With epoxy-encapsulated terminals, cutout diameter of the plate is 10 mm, 13 mm diameter push button caps available separately. Contact rating: 2, 3 A. Rated voltage of the contact: 220 V ac; 24 V dc. Contact resistance: 0.01 Ohm. Dielectric strength: 2000 V. Operating temperature range: -40 to +85 °C. Solder terminals.
Colour | Silver |
Switch + button type | Push-button switch |
Diameter | 10.20 mm |
Item number | 9942042 |
Manufacturer | APEM |
Category | Buttons + Switches |
Manufacturer no. | 104450003 |
Release date | 22.10.2018 |
External links | |
Minimum order | 2 |
Colour | Silver |
Exact colour description | Metal |
Material group | Metal |
Material | Silver |
Switch + button type | Push-button switch |
Operating mode | Key |
Number of actuation levels | 2x |
LED colour | without LED |
Number of poles | 2x |
Nominal voltage | 220 V |
Nominal current | 2 A |
CO₂ emissions | 95.84 kg |
Climate contribution | CHF 0.92 |
Smart home | Not compatible |
Items per sales unit | 1 pcs. |
Scope of delivery | Push button |
Diameter | 10.20 mm |
