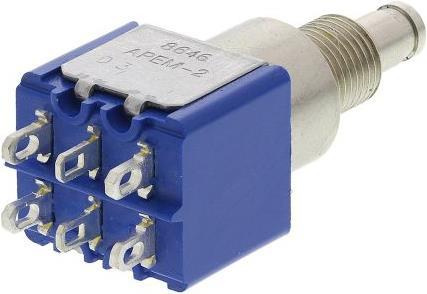

APEM DPDT latching pushbutton switch
Minimum order 4More than 10 pieces in stock at third-party supplier
Product details
Switching sequence: Latching
Contact arrangement: Double-pole double-throw switch (DPDT)
Mounting type: Front panel mounting
Panel cutout diameter: 6.5 mm
Contact rated current: 4 A @ 30 V dc
Actuator type: Plunger
Apem miniature push buttons. The miniature switches of the Apem Series 8000 include momentary and latching switches in versions as single-pole and double-pole switches. The compact miniature housing features a stainless steel body and epoxy-sealed terminals, and the actuator made of nickel-plated brass is compatible with interchangeable colored caps. Optional protective caps are also available. Features and benefits: Electrical lifespan: 30,000 switching cycles, insulation resistance: 1,000 MOhm @ 500 V dc, terminals available in gold-plated brass or gold-plated silver. Available in this series:
Part No. 103-5732 is a momentary switch as a single-pole switch
Part No. 103-5748 is a latching switch as a single-pole switch
Part No. 103-5760 is a momentary switch as a double-pole switch
Part No. 103-5776 is a latching switch as a double-pole switch
Part No. 103-5782 is a black push button cap
Part No. 103-5798 is a red push button cap
Part No. 103-5805 is a green push button cap
Part No. 119-3692 is a protective cap
Part No. 692-8428 is a momentary switch as a single-pole switch
Part No. 692-8430 is a latching switch as a single-pole switch
Part No. 692-8437 is a momentary switch as a double-pole switch
Part No. 692-8434 is a latching switch as a double-pole switch.
Colour | Silver |
Width | 6.35 mm |
Diameter | 6.35 mm |
Item number | 9899080 |
Manufacturer | APEM |
Category | Buttons + Switches |
Manufacturer no. | 8646A |
Release date | 16.10.2018 |
Minimum order | 4 |
Colour | Silver |
Exact colour description | Metal |
Material group | Metal |
Material | Metal |
Operating mode | Key |
Number of actuation levels | 2x |
LED colour | without LED |
Number of poles | 2x |
Nominal voltage | 250 V |
Nominal current | 3 A |
CO₂ emissions | 95.84 kg |
Climate contribution | CHF 0.40 |
Smart home | Not compatible |
Items per sales unit | 1 pcs. |
Scope of delivery | 1 pc. Pressure switch 250 V, AC 3 A 2 x On, Resting 1 pc. |
Width | 6.35 mm |
Diameter | 6.35 mm |
