Amf Push-pull type toggle clamp

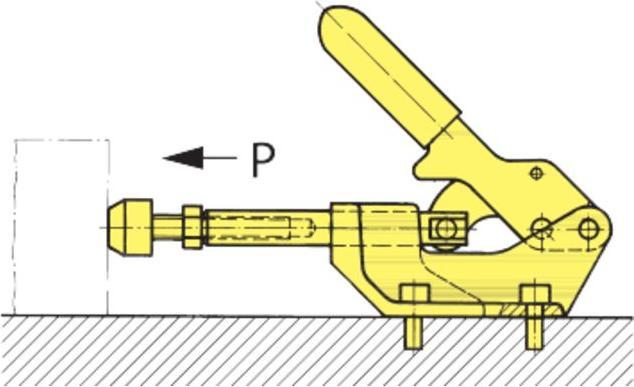

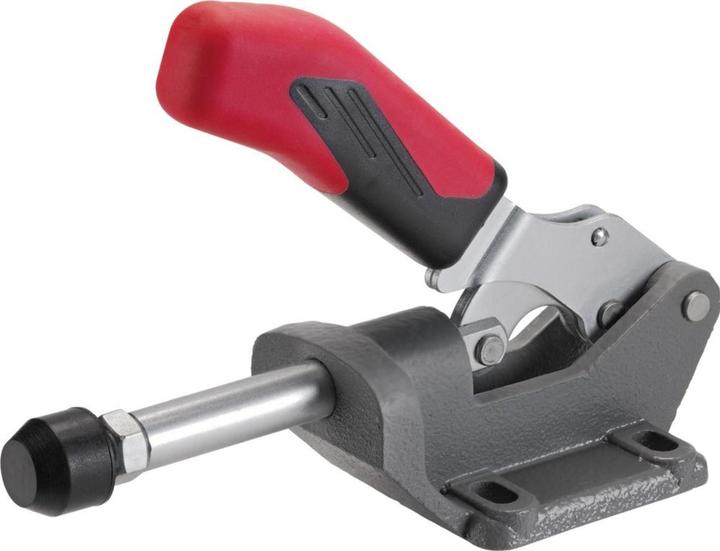

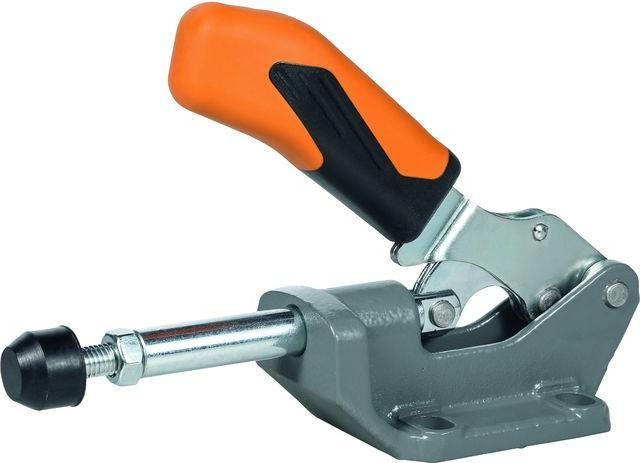

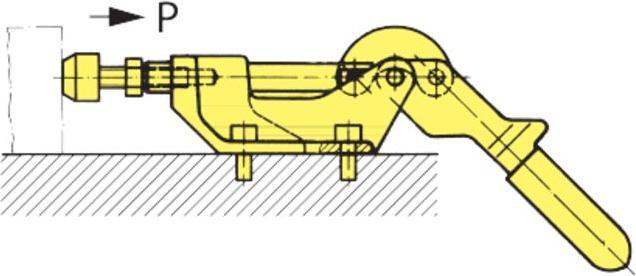

Heavy-duty tension and compression clamp with a long push rod guide. Base body made of ductile cast iron, painted. Lever parts and push rod made of heat-treated steel, galvanized and passivated. Rivet made of stainless steel, which runs in hardened bearing bushings for size 3. Lubricated bearing points. Handle made of red, oil-resistant plastic. For sizes 3 and 5: ergonomic, oil-resistant handle with a large hand support and soft component. Complete with heat-treated, galvanized pressure screw.

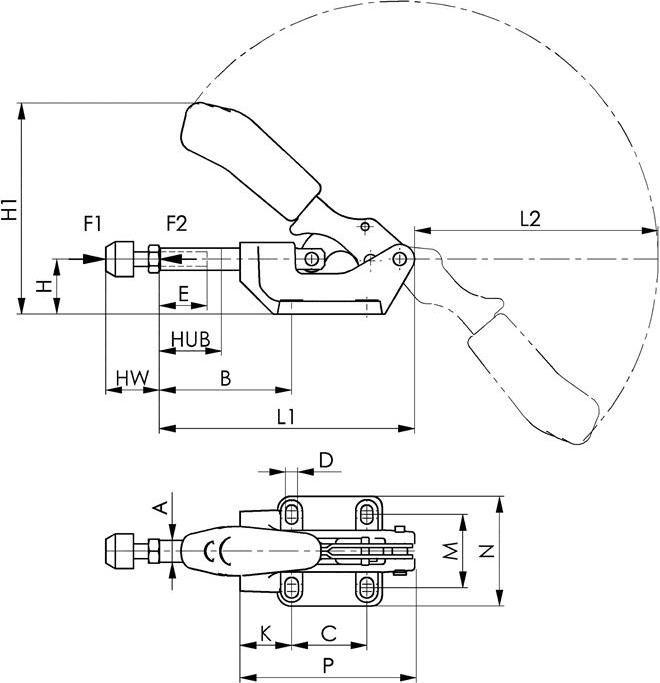

Additional technical specifications:
· P: 158 mm
· Total height: 180 mm
· K: 45 mm
· C: 70 mm
· D: 11 mm
· F1: 25 kN
· L1: 218 mm
· F2: 25 kN
· B min.: 59 mm
· Hole diameter: 11 mm
· B max.: 105 mm
· H: 55 mm
· N: 93 mm
· Property: heavy, tension/compression clamp
· E: 50 mm
· M min.: 57 mm
· A: 22 mm
· M max.: 65 mm
· H1: 179 mm
· Total length: 218 mm.
