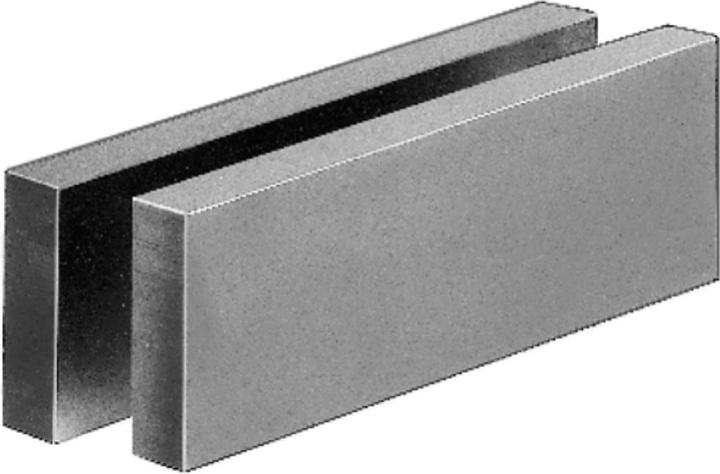

Amf Parallel pieces DIN 6346 P 25x8.0x100 mm

Super precision, pairwise plane-parallel finely ground, case-hardened. Pair tolerance in height tp2 and width tp1 according to IT 5. Nominal size tolerance in height and width according to DIN ISO 2768m, remaining dimensions according to DIN ISO 2768m. Size specifications on the product. Application: The parallel pieces are used as supports, stops, or spacers on machine tools, as well as for the parallel support of workpieces on machine vises and marking plates. Use flat or upright is possible. Further technical specifications: L: 100 mm, b: 8 mm, Pair tolerance: tp1: 0.009 mm / tp2: 0.006 mm, h: 25 mm.
