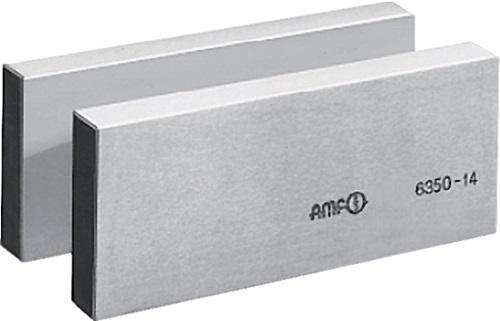

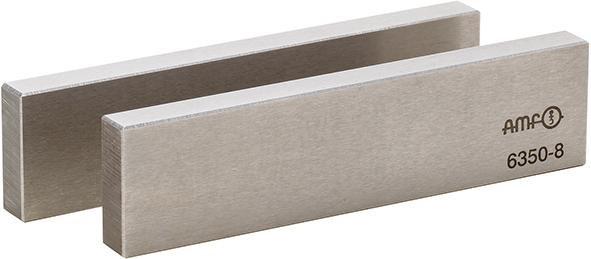

Amf Pair of parallel stops 12 mm

For machine grooves, also usable as parallel supports, pairwise ground to a height that is plane-parallel, case-hardened. Pair tolerance tp in height IT5, nominal dimension tolerance in height DIN ISO 2768m, nominal dimension tolerance in width h7, remaining dimensions according to DIN ISO 2768m. Application: The parallel stops are primarily designed for small to medium machines. They are matched in thickness to the machine grooves with tolerance H8. A pair of these stops is inserted into a machine groove, allowing workpieces to be quickly aligned parallel to the table. Additional technical specifications: Width: 12mm, Length: 100mm, Height: 40mm.
