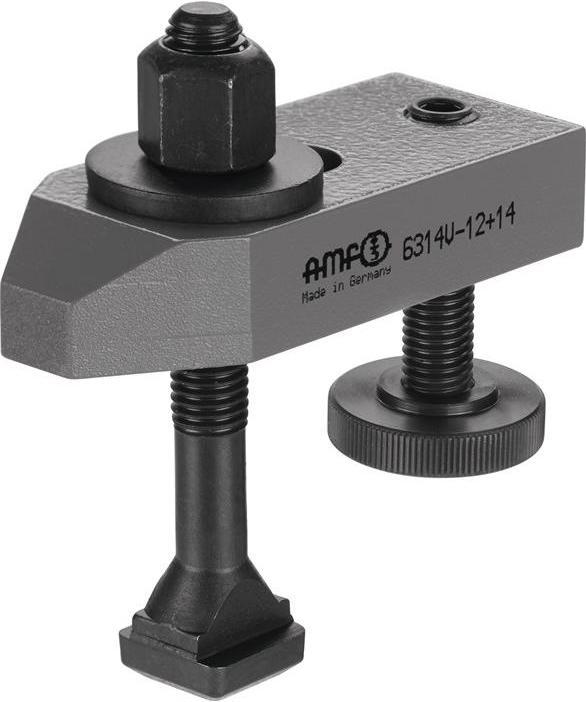

Amf Clamping bar no. 6314V for T-slot 22 mm Clamping height 19 - 105 mm Clamping screw M20 x 22 x 200 mm

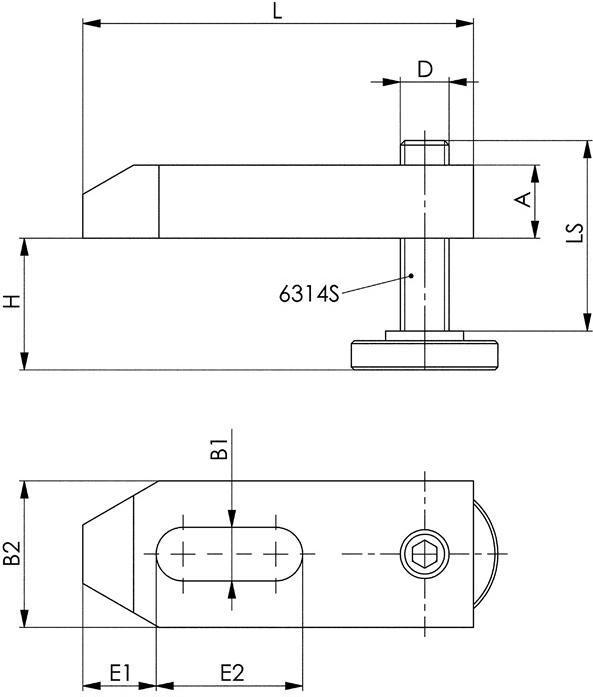

Bevelled - With adjustable support and clamping screw - Tempered steel lacquered Further technical features: - Width: 60mm - Length: 160mm - A: 30mm - B1: 22mm - B2: 60mm - E2: 60mm - D: M20 - E1: 30mm - Weight: 2980g - L: 160mm - Thickness: 30mm - LS: 109mm - Slot width: 22mm - H: 19 - 105mm

Note: Dimension h = depends on slot depth according to DIN 650, as well as screw-in length of nut. Clamping irons without clamping screw are available in sizes 12 and 14, 16 and 18 as well as 20 and 22 mm one size each.
