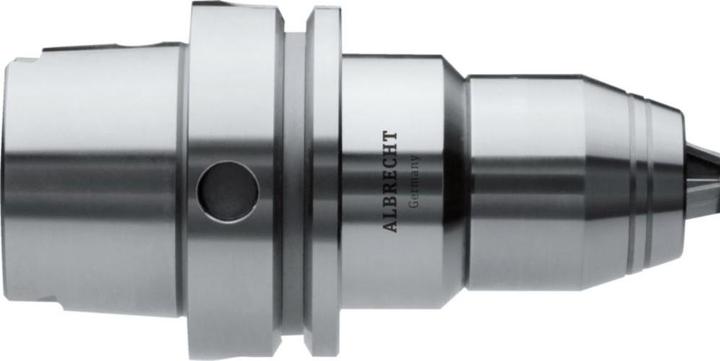

Albrecht Short Drill Chuck AKL DIN 69871 AD HSK 63 0.5-10mm A

CNC precision short drill chuck for clockwise and counterclockwise rotation. Application: For use on machining centers and CNC machines with tool changers. Design: Shank according to DIN 69893 HSK Form A. Precision design with the highest runout tolerance of 0.03 mm. 100% runout tolerance testing with different measuring pin diameters at various measuring points based on DIN ISO 10888. Tool clamping is done using the included hex key. Hardness 64 HRC for clamping jaws. Advantage: Safe, as the chuck cannot open during operation or in the event of an abrupt spindle stop. Integrated worm gear provides a high holding torque of over 75 Nm at a diameter of 13 mm. Note: Higher speeds available upon request. Delivery: CNC drill chuck including clamping key.
