ABN Small distributor

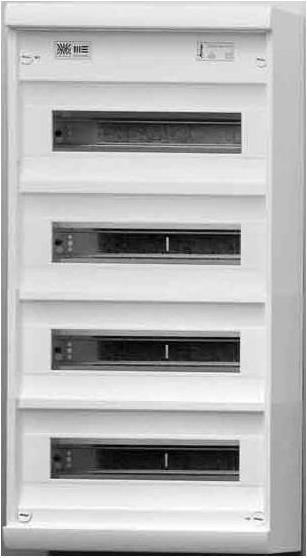

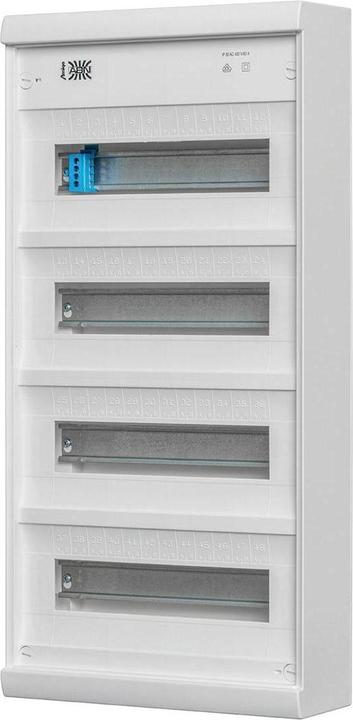

ABN small distribution board A48A

Manufacturer: ABN
Designation: Small distribution board
Type: A48A
Mounting type: Surface-mounted
Number of rows: 4
Width in division units: 12
Type of cover: Without
Design of cover: With cut-out
Transparent cover/door: No
Material of housing: Plastic
Height: 620 mm
Width: 305 mm
Depth: 99 mm
Installation depth: 106 mm
Installation height: 610 mm
Installation width: 295 mm
Internal depth: 76 mm
Ground terminal block: Yes
Neutral terminal block: Yes
DIN rail: Yes
With mounting plate: No
Mounting option: No
EMC version: No
Color: White
RAL number: 9010
Protection class (IP): IP30
With lock: No
Type of lock: Other
Signal passing door: No

Further details:
Surface-mounted small distribution board, without door, with plug-in terminals. PE 6 x 2.5 - 16 + 21 x 1.5 - 4 qmm. N+N 2x (3 x 2.5 - 16 + 14 x 1.4 - 4 qmm). Additional N-FI terminal 3 x 16, 2 x 10 qmm. Dimensions W x H x D (mm) 300 x 620 x 106. TE each 18 mm 48/56. Rows 4. Protection class: IP30. For devices up to 63A. Distributor base plate made of plastic, standard with fixation for the supply and outgoing cables as well as pre-stamping for rear and side cable entries. Pre-stampings for cable ducts. Device rows for 12 HP (expandable to 14 HP). Color: RAL 9016 (traffic white). Built according to DIN VDE 0603-1, DIN 43871. PE/N terminal with +, - screws, touch-proof, with easy-to-install latching of the PE+N carrier. From 2-row version with additional FI-N terminal. For built-in devices from 51 to 68 mm. With lowered device support rail (accessory), built-in devices up to 88 mm can also be used. Solid door as optional accessory. Solid doors made of sheet steel, powder-coated. Standard with door operation by flush designer handle, folding back. Door opening angle over 180 degrees. Door hinge optionally right or left. Color: RAL 9016, traffic white. EAN: 4015153035317.
