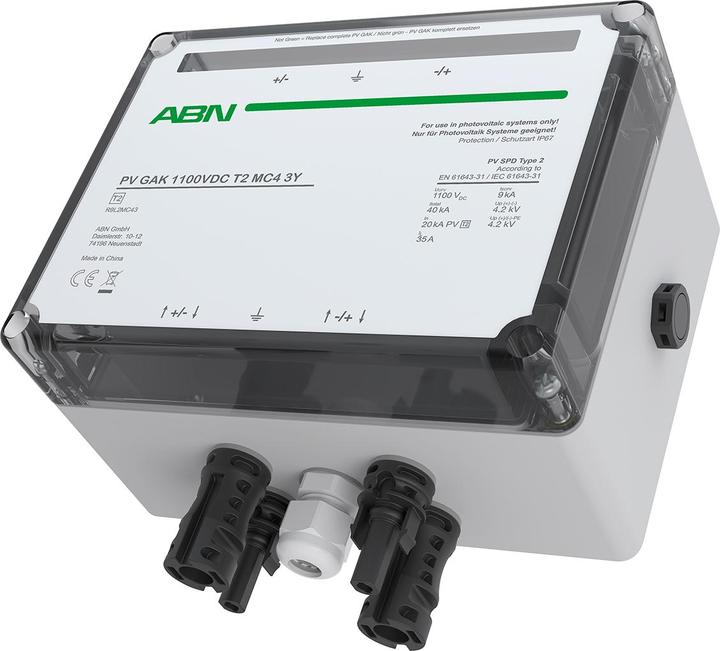

ABN PV generator junction box

ABN PV GAK ÜSS Type 2 R9L2MC43

Manufacturer: ABN
Designation: PV GAK ÜSS Type 2
MPPT: 1
Connector Type: MC4
Model: R9L2MC43
Number of Inputs: 1
Max Voltage Range DC: 1100 V
Voltage Measuring Range DC: 1100 V
Width: 200 mm
Height: 105 mm
Depth: 170 mm
String Fuse: Without
Material: Plastic
Protection Class (IP): IP67
Impact Resistance: IK08
Fuse Type: Other
For Fuse Size: Other
Fuse Rating Input: 35 A
Test Class Type 1: No
Test Class Type 2: Yes
Test Class Type 3: No
Communication Protocol: Other
Communication Bus: Other
Monitoring Function: No
Operating Temperature: -40 to 85 °C
Suitable for Max Current of Main Contact Unit: 35 A
Output Voltage: 1100 V
Max Output Current: 35 A
Output Current: 35 A
Colour: Grey
Number of Cable Entries: 1
Type of Entry: Other

Further details: Generator junction box (GAK) for inverters with 1 MPP Tracker, protection of the DC side by means of integrated surge arrester type 2, connection by means of MC4 connector, IP67, Ucpv = 1100 V, In/Imax = 20 kA/40 kA.
