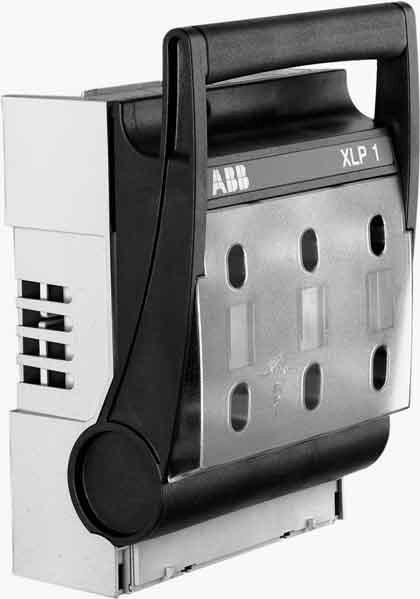

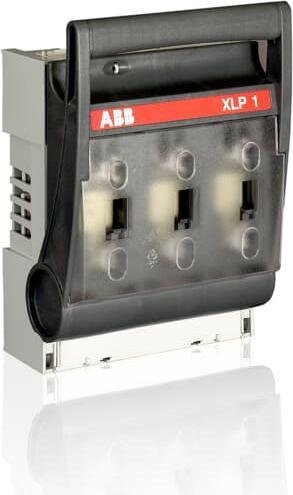

ABB XLP1-6BC Fuse switch-disconnector 3- 1SEP101891R0002

Ratings
Delivered between Sat, 21.6. and Tue, 1.7.
Only 2 items in stock at supplier

Product details

ABB Stotz S&J Fuse Load Break Switch XLP1-6BC

Manufacturer: ABB Stotz S&J
Designation: Fuse Load Break Switch NH1 with terminals
Type: XLP1-6BC
Configured as main switch: yes
Configured as safety switch: yes
Max. rated operational voltage Ue for AC: 800 V
Rated continuous current Iu: 200 A
Conditional rated short-circuit current Iq: 50 kA
Suitable for fuse inserts: NH1
Number of poles: 3
With fuse monitoring: no
Connection type main circuit: cable terminal
Cable entry: other
Equipped with connectors: yes
Suitable for floor mounting: no
Suitable for front mounting: no
Suitable for busbar installation: yes
Design of the operating element: other
Position of the operating element: front
Motor drive optional: no
Motor drive integrated: no
Configured as emergency stop device: no
Protection class (IP), front side: IP30

The EasyLine series from ABB features a robust, uniform design that is user-friendly. Thanks to this modern design, the series easily switches rated currents from 100 A to 630 A at voltages from 220 V to 690 V. Additionally, a high level of safety is ensured with protection class IP30 in the closed position and protection class IP20 in the open position. ABB offers the series in 1-, 2-, 3-, and 4-pole variants, including a wide range of cable terminals and snap-on accessories. Furthermore, the devices are tested according to EN / IEC 60947-3.

Key specifications

Protection type (IP code)
IP30
Item number
33486590

General information

Manufacturer
ABB
Category
Wiring closet technology
Manufacturer no.
1SEP101891R0002
Release date
17.5.2023

Distribution cabinet technology Features

Nominal current
250 A
Protection type (IP code)
IP30
Nominal voltage
800 V
number of poles
3
Fuse size
250 amps
Divisions
1 x

Origin

Country of origin
Bulgaria

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 pcs.
