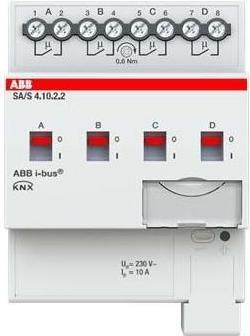

ABB Switch actuator 4gang, 10A REG SA/S4.10.2.2

ABB Stotz S&J Switching Actuator SA/S4.10.2.2 Manufacturer: ABB Stotz S&J Description: 4-channel switching actuator, 10A REG Type: SA/S4.10.2.2 Bus system KNX: yes Bus system KNX-RF: no Bus system Radio bus: no Bus system LON: no Bus system Powernet: no Other bus systems: without RF bidirectional: no Mounting type: REG Width in division units: 4 Local/manual operation: yes With LED display: yes Max. switching power: 2500 W Max. switching power LED: 400 W Output power: 2500 W Suitable for C-load: no Max. number of switching outputs: 4 Max. switching current: 10 A Rated current: 10 A Rated operating voltage: 230 V Different phases connectable: yes With bus coupling: yes Bus module removable: no Min. depth of device box: 64.5 mm Modular expansion option: no Protection class (IP): IP20 The switching actuator controls electrical consumers via ABB i-bus® with 2, 4, 8, or 12 independent potential-free contacts. Manual operation of the contact is possible for each output. The switching state of the contact is displayed. The 10A series is particularly suitable for switching resistive, inductive, and capacitive loads, as well as fluorescent lamp loads according to DIN EN 60669. EAN: 4016779066570.
