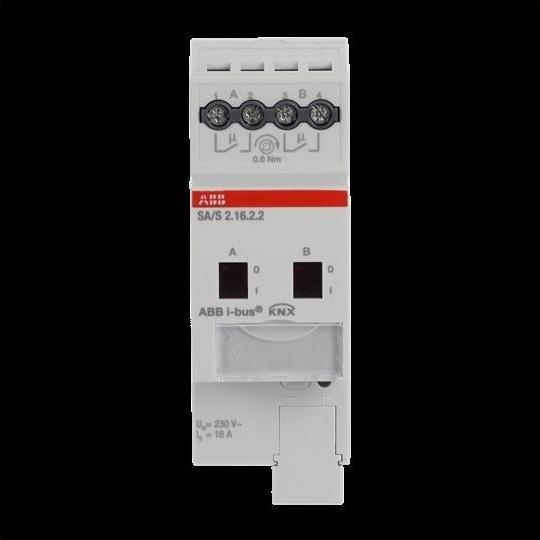

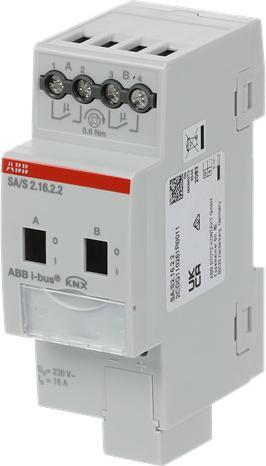

ABB Switch actuator 2gang, 16A, REG SA/S2.16.2.2

ABB Stotz S&J switch actuator SA/S2.16.2.2

Manufacturer: ABB Stotz S&J
Designation: Switch actuator 2gang, 16A, REG
Type: SA/S2.16.2.2
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: Without
Radio bidirectional: No
Mounting type: REG
Width in pitch units: 2
On-site/manual operation: Yes
With LED display: Yes
Max. switching capacity: 2500 W
Max. switching capacity LED: 400 W
Output power: 2500 W
Suitable for C-load: No
Max. number of switching outputs: 2
Number of switching outputs: 2
Max. rated current: 16 A
Rated operating voltage: 230 V
Different phases connectable: Yes
With bus coupling: Yes
Bus module removable: Yes
Min. depth of device box: 64.5 mm
Modular expansion option: Yes
Protection class (IP): IP20

ABB Stotz S&J switch actuator SA/S2.16.2.2 switches electrical loads via ABB i-bus® with 2, 4, 8, or 12 independent floating contacts. Manual operation of the contact is possible for each output, and the switching state of the contact is displayed. The 16A standard series is suitable for switching resistive loads (AC1).
