ABB Stotz S&J Sick load-break switch XLP1 Gru XLP1

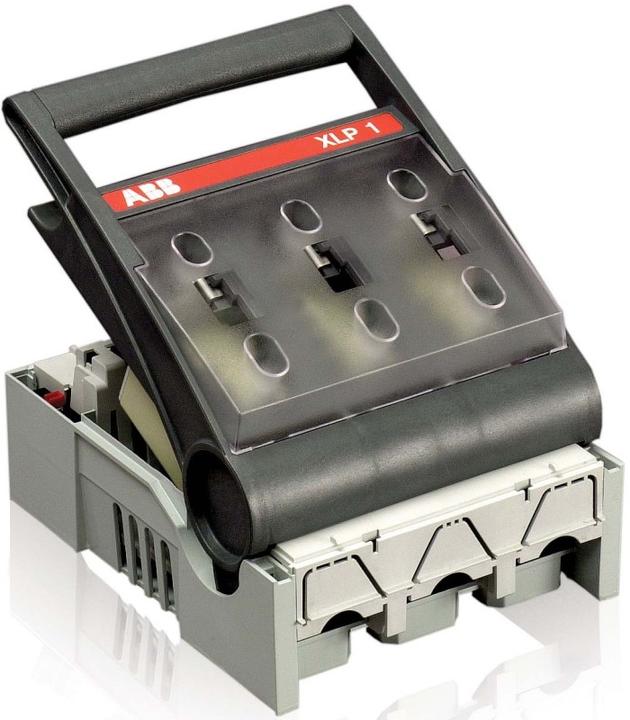

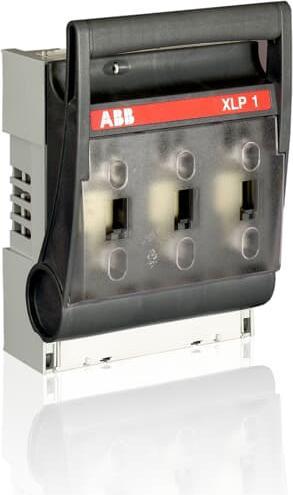

ABB Stotz S&J Fuse Load Break Switch XLP1 Manufacturer: ABB Stotz S&J Description: Fuse load break switch. 3-pole 250A Type: XLP1 Designed as a main switch: yes Designed as a safety switch: yes Max. rated operational voltage Ue for AC: 800 V Rated continuous current Iu: 200 A Conditional rated short-circuit current Iq: 50 kA Suitable for fuse inserts: NH1 Number of poles: 3 With fuse monitoring: no Connection type main circuit: Bolt connection Cable entry: other Equipped with connectors: yes Suitable for floor mounting: no Suitable for front mounting: no Suitable for busbar installation: yes Design of the operating element: other Position of the operating element: front Motor drive optional: no Integrated motor drive: no Designed as an emergency stop device: no Protection class (IP), front side: IP30 ABB Stotz S&J Fuse Load Break Switch XLP1: further details The EasyLine series from ABB features a robust, uniform design that is user-friendly. Thanks to this modern design, the series easily switches rated currents from 100 A to 630 A at voltages from 220 V to 690 V. Additionally, a high level of safety is ensured with protection class IP30 in the closed position and protection class IP20 in the open position. ABB offers the series in 1-, 2-, 3-, and 4-pole variants, including a wide range of cable terminals and snap-on accessories. Furthermore, the devices are tested according to EN / IEC 60947-3.
