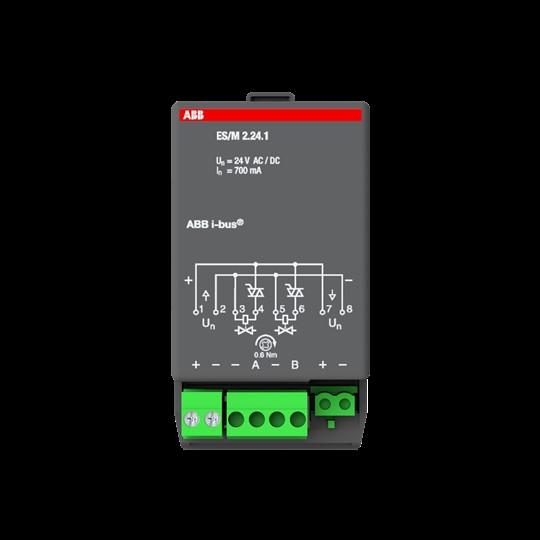

ABB Stotz S&J Electrical Switching Module ES/M 2.24.1

ABB Stotz S&J Electric Switching Actuator Module ES/M2.24.1
Manufacturer: ABB Stotz S&J
Designation: Electric Switching Actuator Module 2-fold 24V
Type: ES/M2.24.1
Bus System KNX: yes
Bus System KNX-RF: no
Bus System Radio Bus: no
Bus System LON: no
Bus System Powernet: no
Other Bus Systems: none
Mounting Type: other
With Bus Coupling: no
Bus Module Removable: no
Max. Switching Current (resistive load): 0.7 A
Number of Outputs: 2
Switching Voltage: 24 V
Protection Class (IP): IP54

ABB Stotz S&J Electric Switching Actuator Module ES/M2.24.1: further details
Module for insertion into the room controller base unit. It features two overload-proof, silent, and wear-free outputs for controlling electrothermal heating actuators with a voltage of 12/24 V AC/DC, max. 700 mA continuous current.
