ABB STOTZ-KONTAKT Blind/roller shutter actuator w.movement time detection JRA

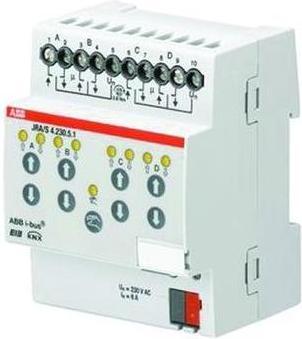

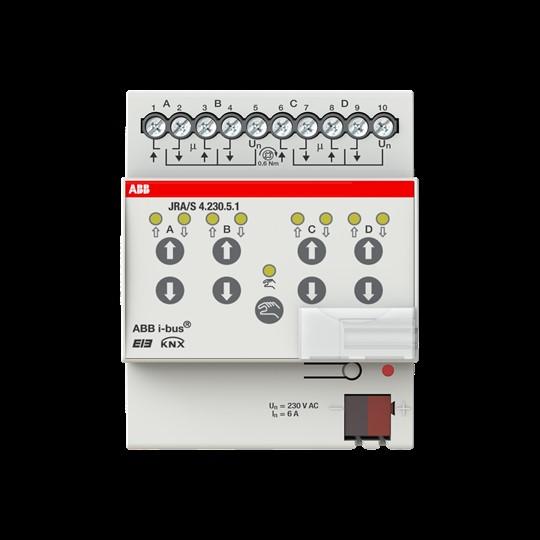

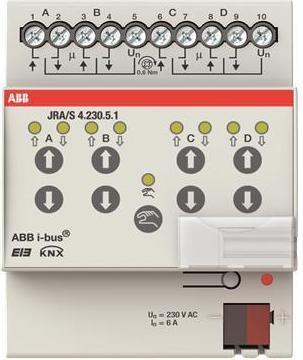

ABB Stotz S&J blind/roller shutter actuator JRA/S4.230.5.1

Manufacturer: ABB Stotz S&J
Designation: Blind/roller shutter actuator with movement time detection
Type: JRA/S4.230.5.1
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: Without
Radio bidirectional: No
Mounting type: REG
Width in pitch units: 4
With bus coupling: Yes
Bus module removable: No
On-site/manual operation: Yes
With LED display: Yes
Switching current ohmic: 6 A
Max. switching capacity: 2400 W
Switching capacity: 2400 W
Max. number of blind outputs: 4
Function switching: Yes
Current type: AC
Protection class (IP): IP20
Min. depth of device box: 64.5 mm

This actuator is designed for controlling a maximum of four independent 230 V AC drives for positioning blinds, shutters, awnings, and other hangings, as well as for controlling doors, windows, and ventilation flaps. It features automatic travel time determination and allows for manual operation directly on the device, with no auxiliary voltage required. The outputs are electromechanically interlocked.

Functions include up/down, slat adjustment/stop, position and scene control, safety functions, sun protection, heating/cooling automatic, and status messages.

EAN: 4016779698443.
