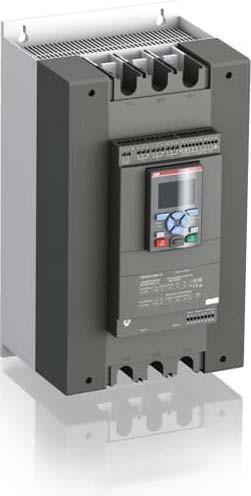

ABB Soft starter

ABB Stotz S&J Softstarter PSTX210-690-70

Manufacturer: ABB Stotz S&J
Designation: Softstarter 184 kW 690 V
Type: PSTX210-690-70
Rated operational current at 40 °C: 210 A
Rated operational voltage: 208 to 690 V
Rated power of three-phase motor, standard circuit, at 230 V: 59 kW
Rated power of three-phase motor, standard circuit, at 400 V: 110 kW
Rated power of three-phase motor, star-delta circuit, at 230 V: 102 kW
Rated power of three-phase motor, star-delta circuit, at 400 V: 184 kW
Function: Reversing starter
Internal bypass: Yes
With display: Yes
Torque control: Yes
Rated ambient temperature without derating: 40 °C
Rated control supply voltage at AC 50 Hz: 100 to 250 V
Rated control supply voltage at AC 60 Hz: 100 to 250 V
Type of voltage for actuation: AC
Integrated overload protection for the motor: Yes
Tripping class: Adjustable
Protection class (IP): IP00
Protection class (NEMA): 1

The PSTX softstarters provide complete motor protection in a single device and operate effectively even during load or network irregularities. Motor protection is ensured through PT-100, residual current, over- and undervoltage protection, and additional functions. Various start, stop, and torque adjustment options allow precise adaptations to the specific application. For example, the pump cleaning function can alternately reverse the pump flow, thereby cleaning the pump impeller of contamination. The slow jog operation forward and backward increases flexibility, such as when operating conveyors and cranes. A built-in bypass ensures energy efficiency by reducing heat generation during operation. The display and menu navigation are user-friendly.
