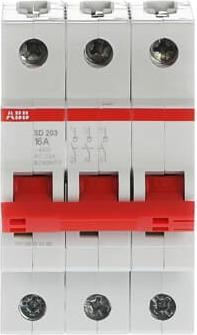

ABB SD203/16 switch-disconnector SD203/16

ABB Stotz S&J Load Break Switch SD203/16

Manufacturer: ABB Stotz S&J
Designation: 3-pole load break switch, 16A
Type: SD203/16
Switching function: Disconnect switch
Number of contacts as normally open: 3
Number of poles: 3
Rated current: 16 A
Rated voltage: 440 V
Minimum rated voltage: 12 V
Rated short-circuit breaking capacity: 10 kA
Short-circuit withstand strength (Icw): 25 kA
Type of voltage: AC
With signal lamp: No
Color of the dome: Gray
Width in modular units: 3
Installation depth: 69 mm
Degree of protection (IP): IP20
Printing/marking: Without forced disconnection (according to DIN VDE 0113): Yes

Additional details:
The SD 200 series expands the proven pro M compact system with load break switches. The series is available in 1- to 4-pole versions with rated currents from 16 to 63 A and has disconnector properties according to DIN EN 60947-3. The SD 200 offers new application possibilities with a rated voltage of 253/440 V AC, a conditional short-circuit withstand strength of 25 kA, a cylinder-lift terminal with 2 connection points, and back plug protection. The Real CPI switching position indicator clearly indicates the switching state of the device. Its full compatibility with all MCB accessories makes it unique in its field.
EAN: 4016779904186.
