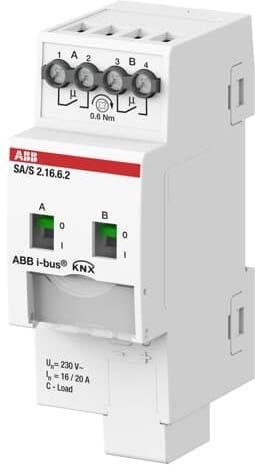

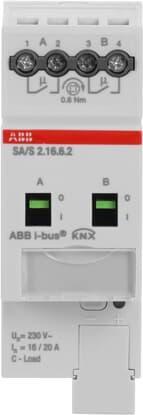

ABB SA/S2.16.6.2

ABB Stotz S&J Switching Actuator 2-fold SA/S2.16.6.2

Manufacturer: ABB Stotz S&J
Designation: 2-fold switching actuator 16A, C-load
Type: SA/S2.16.6.2
Bus system KNX: yes
Bus system KNX-RF: no
Bus system Radio Bus: no
Bus system LON: no
Bus system Powernet: no
Other bus systems: none
Bidirectional radio: no
Mounting type: REG
Width in modular units: 2
Local/manual operation: yes
With LED display: yes
Max. switching power: 3680 W
Max. switching power LED: 400 W
Output power: 3680 W
Suitable for C-load: yes
Max. number of switching outputs: 2
Max. switching current: 20 A
Rated current: 20 A
Rated operating voltage: 110..230 V
Different phases connectable: yes
With bus coupling: no
Bus module removable: no
Min. depth of device box: 64.5 mm
Modular expansion option: no
Protection class (IP): IP20

The switching actuator controls two independent electrical consumers via ABB i-bus® KNX with potential-free contacts. It features an integrated energy function and provides current measurement for each output. This includes an easy-to-use calculation of power and energy consumption per output or group of outputs. With an integrated load control object, simple integration into a load management system is enabled. Each output can be operated manually and has a switching status display. The 16/20A, 16A-AC3 (C-load) device is particularly suitable for switching loads with high inrush current peaks, such as LED lamps or fluorescent lamp loads.
